Reference
10-H19-13

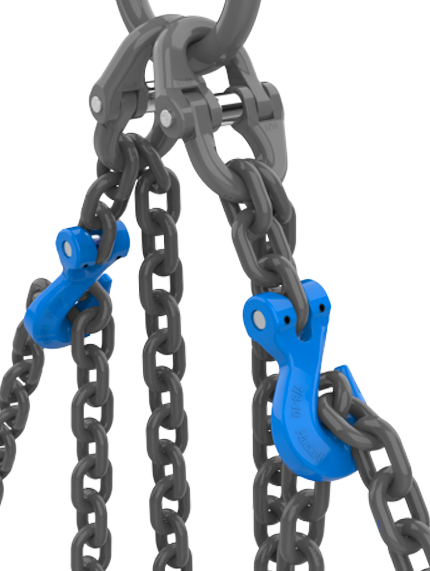

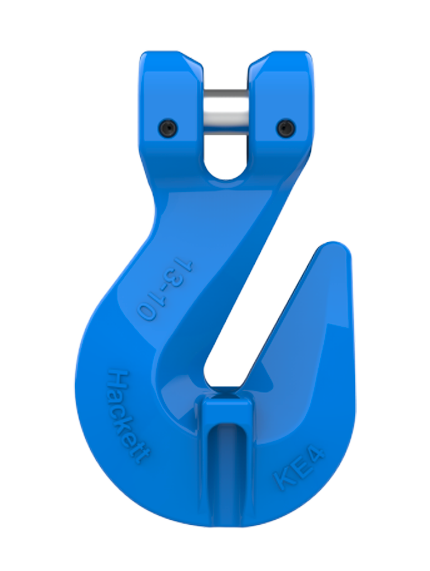

The Hack10 clevis grab hook is fundamentally used to grab chain. As a result, it is commonly used in lifting applications as a chain shortening device, as well as for lashing. This grab hook is capable of attachment directly onto chain thanks to its clevis attachment type. Manufactured from alloy steel, the Hack10 clevis grab hook is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter chain sling. Grade 10 and Grade 100 refer to the same high-performance alloy.
- Alloy steel
- Safety factor 4:1
- 2.5t to 10t available on special orders
- Operational temperature - 40°C to + 200°C
- EN1677-1
- ASTM A952/A952M (grade 100)
- DIN PAS 1061 (grade 10)
Documentation
File

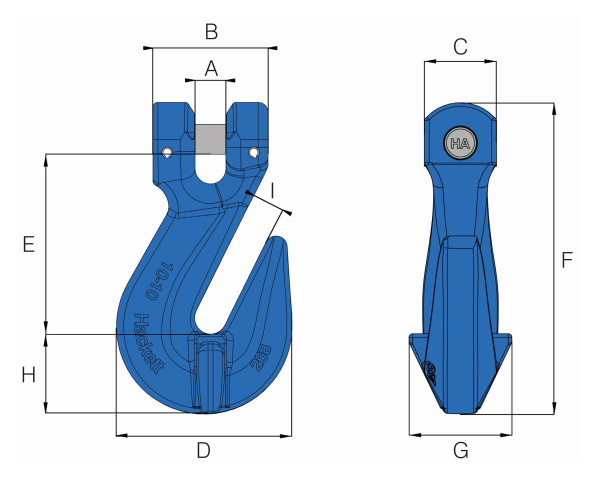

Models & Dimensions
| ||||||||||||
| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | |||||||||
| Chain size | A | B | C | D | E | F | G | H | I | |||
| 10-H05-13 | 15000 [6.7] | 4.37 [1.98] | 1/2 [13] | 0.59 [15] | 2.32 [59] | 1.46 [37] | 3.78 [96] | 3.62 [92] | 6.46 [164] | 2.11 [53.5] | 1.77 [45] | 0.59 [15] |
