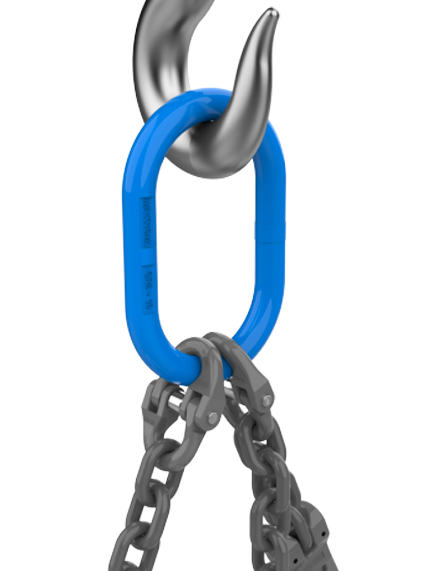

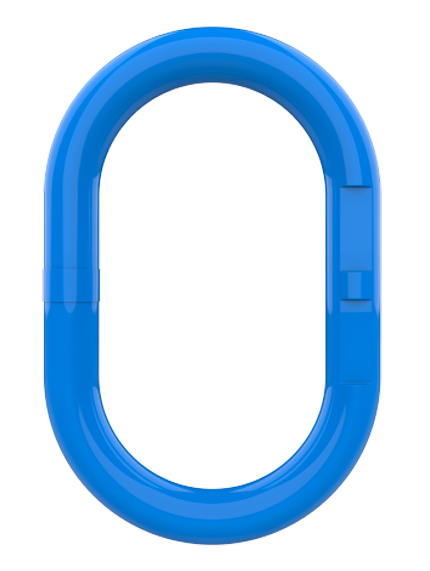

The Hack10 master link is the cornerstone of any Hack10 chain sling assembly. It acts as the connection point between the sling legs below and the lifting machine above. A Hack10 master link is used in both one leg and two leg chain slings, as well as forming part of a Hack10 sub assembly for use with three and four leg chain slings. Manufactured from alloy steel, the Hack10 master link is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter link.
- Two year warranty
- Alloy steel
- Safety factor 4:1
- 2.8t to 17t
- Operational temperature - 40°C to + 200°C
Documentation
| |||||||

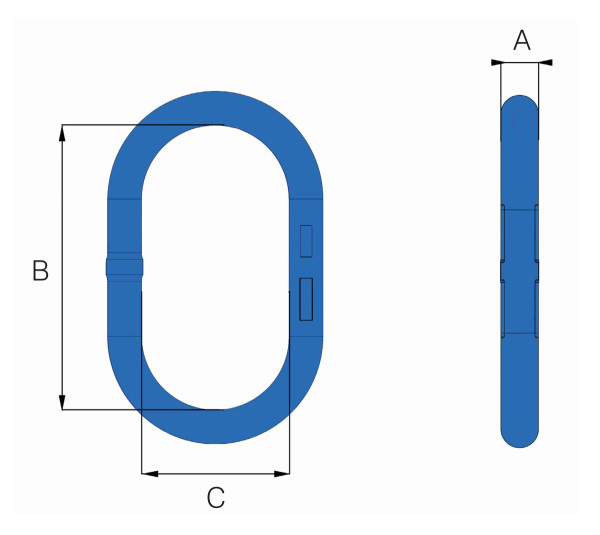

| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | ||||
| Chain size (single leg) | Chain size (double leg) | A | B | C | |||
| 10-H01-0806 | 5700 [2.8] | 1.04 [0.47] | 7/32 - 5/16 [6/7/8] | 7/32 [6] | 0.57 [14.5] | 4.92 [125] | 2.36 [60] |
| 10-H01-1008 | 8800 [4.2] | 1.59 [0.72] | 3/8 [10] | 7/32 - 5/16 [7/8] | 0.63 [16.0] | 5.91 [150] | 2.95 [75] |
| 10-H01-1310 | 15000 [6.7] | 3.31 [1.5] | 1/2 [13] | 3/8 [10] | 0.87 [22.0] | 6.38 [162] | 3.54 [90] |
| 10-H01-1613 | 22600 [11.8] | 6.61 [3.0] | 5/8 [16] | 1/2 [13] | 1.10 [28.0] | 7.87 [200] | 4.33 [110] |
| 10-H01-2016 | 35300 [17.0] | 11.24 [5.1] | 3/4 [20] | 5/8 [16] | 1.26 [32.0] | 10.63 [270] | 5.51 [140] |
