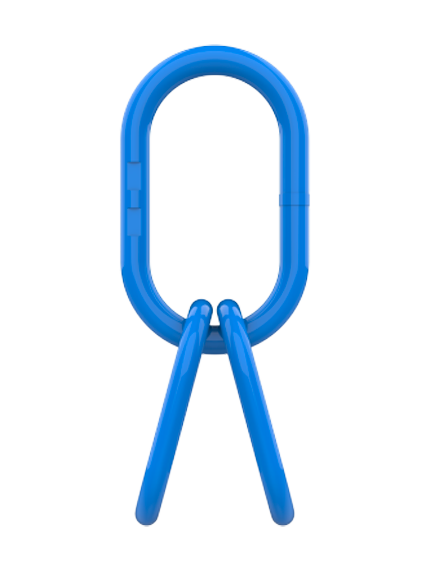

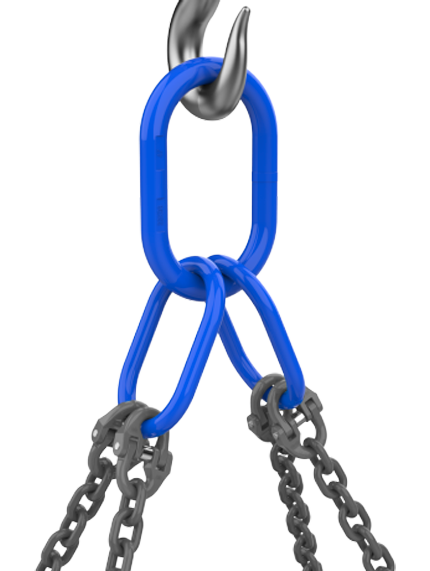

The Hack10 sub assembly is the cornerstone of any Hack10 chain sling assembly. It acts as the connection point between the sling legs below and the lifting machine above. A Hack10 sub assembly comprises a master link and two sub links welded together, and is therefore used in both three leg and four leg chain slings. Manufactured from alloy steel, the Hack10 sub assembly is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter link.
- Two year warranty
- Alloy steel
- Safety factor 4:1
- 2.9t to 21t
- Operational temperature - 40°C to + 200°C
Documentation
| |||||||||

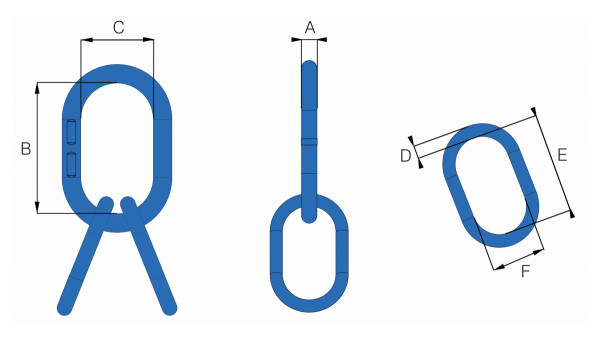

| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | ||||||
| Chain size | A | B | C | D | E | F | |||
| 10-H02-06 | 6800 [2.9] | 3.57 [1.62] | 7/32 [6] | 0.63 [16] | 5.90 [150] | 2.95 [75] | 0.57 [14.5] | 4.92 [125] | 2.36 [60] |
| 10-H02-08 | 12100 [5.3] | 6.26 [2.84] | 7/32 - 5/16 [7/8] | 0.87 [22] | 6.38 [162] | 3.54 [90] | 0.63 [16] | 5.91 [150] | 2.95 [75] |
| 10-H02-10 | 18700 [8.4] | 12.99 [5.89] | 3/8 [10] | 1.10 [28] | 7.87 [200] | 4.33 [110] | 0.87 [22] | 6.38 [162] | 3.54 [90] |
| 10-H02-13 | 31800 [14.0] | 17.55 [7.96] | 1/2 [13] | 1.26 [32] | 10.63 [270] | 5.51 [140] | 0.87 [22] | 6.38 [162] | 3.54 [90] |
| 10-H02-16 | 47900 [21.0] | 27.34 [12.4] | 5/8 [16] | 1.42 [36] | 10.63 [270] | 5.51 [140] | 1.10 [28] | 7.87 [200] | 4.33 [110] |
