Reference
10-H10-13

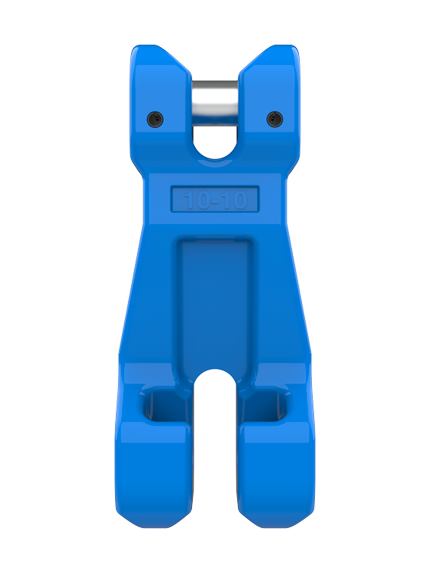

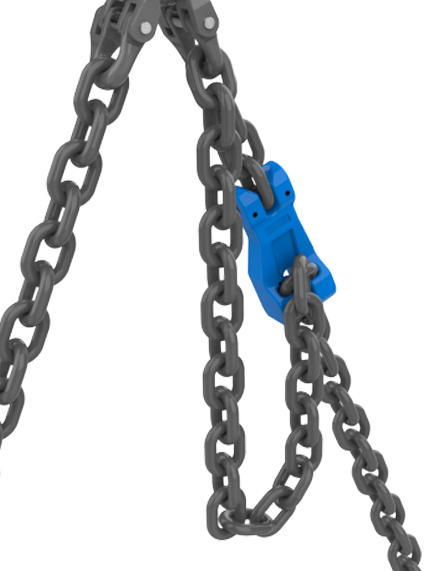

The Hack10 clevis clutch is specifically designed as a chain shortening device for use in Hackett grade 10 chain sling assemblies. Featuring a clevis attachment type, this component connects to master links and sub assemblies via a connector and a short length of chain. This configuration offers greater flexibility than other shortening devices. Manufactured from alloy steel, the Hack10 clevis clutch is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter chain sling.
- Two year warranty
- Alloy steel
- Safety factor 4:1
- 2.5t to 10t available on special order
- Operational temperature - 40°C to + 200°C
Documentation
File

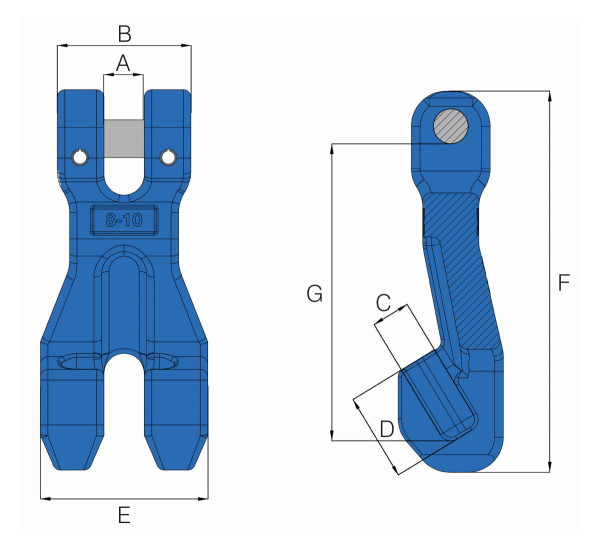

Models & Dimensions
| ||||||||||
| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | |||||||
| Chain size | A | B | C | D | E | F | G | |||
| 10-H10-13 | 15000 [6.7] | 4.43 [2.01] | 1/2 [13] | 0.65 [16.5] | 2.32 [59.0] | 0.63 [16.0] | 1.36 [34.5] | 2.95 [75.5] | 6.97 [177.0] | 4.53 [115.0] |
