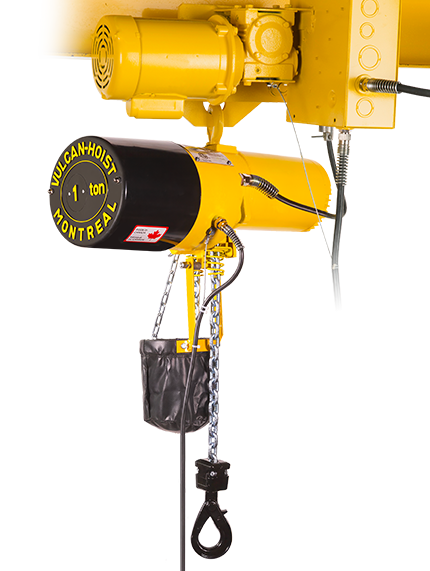

  • Vulcan electric hoist with trolley

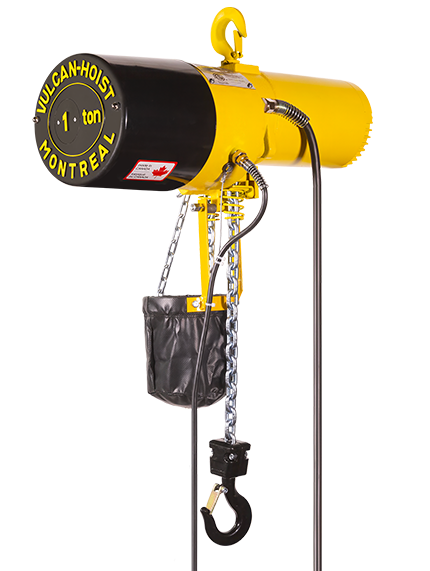

  • Standard 1 ton Vulcan Electric Hoist
  • Vulcan electric hoist 5T
  • Vulcan electric hoist 10T
    • Vulcan electric hoist with trolley
    • Standard 1 ton Vulcan Electric Hoist
    • Vulcan electric hoist 5T
    • Vulcan electric hoist 10T
      Reference
      HOULxxxxx/xxxx-xxx

      Configure your product

      Engineered for industrial reliability, the Vulcan Electric Hoist delivers smooth, precise lifting powered by a rugged worm gear drive and a calibrated Grade 80 load chain. Built in Canada and backed by a two-year warranty, it complies with ANSI/ASME and CSA standards to ensure safety and performance under demanding conditions. Whether in manufacturing, steelworks, or heavy-duty repair, this hoist offers dependable control where it matters most.

      • Two year warranty
      • Made in Canada
      • Built to ANSI/ASME B30.16
      • Certified to CSA C22.2 NO. 33
      • Conforms to UL 1004-1 & UL 1340

      Documentation

      Spare parts

      Description

      Rugged Worm Gear Drive

      • Worm gear drive: robust, reliable and the only one to offer controlled lowering of the load
      • Speeds: 2ft/min to 52ft/min
      • High quality radial and angular ball bearings
      • Industrial alloy gears running in oil bath

      Limit Switches

      • Factory calibrated adjustable upper/lower limit switches
      • Safety stop with integrated limit switch (optional)

      Calibrated Load Chain

      • High performance welded link chain: GR80, tempered and case-hardened alloy steel for greater wear resistance
      • Black finish or zinc plated (optional)
      • Heat treated alloy steel roller chain (optional)

      Hooks

      • Forged hooks with safety latches
      • Bearing-mounted lower hooks swivel freely over 360 degrees
      • Options: low headroom (lug), self-locking hook, zinc plating/epoxy paint (lower hooks)

      Safety Brake

      • Electromechanical brake retains load even if power is lost
      • Brake holds 200% of hoist's working load limit

      Control

      • Standard voltage: 24VAC
      • Options: 115VAC, NEMA 4 pendant, ergonomic pendant, emergency stop, radio control, simultaneous hoists operation, festoon power system, retractable power cable

      Electric Motor

      • Voltages: 115/230-1Ph-50/60Hz, 230/460/575-3Ph-50/60Hz
      • Instantly reversible electronic starter (single phase motors)
      • Insulation: Class B (standard motors), Class F (high performance motors)
      • Options: 2 speeds 3Ph motor, thermal relay, acidity/humidity treatment, TENV or TEFC

      Other Options:

      • Electromechanical overload protection
      • Vinyl or metal chain container
      • Raincover
      • Synthetic oil
      • Strobe light (with electric trolley)
      • Horn (with electric trolley)
      • Choice of paint colour
      • Inverted hoist (theater hoist)
      • Hour & cycle counter
      Dimensions

      Standard dimensions of the hoist

      CapacityModelFallsWeight (lbs)A (in.)B (in.)C (in.)
      1/4TL05110010 5/813 3/41
      1/2TL1110010 5/813 3/41
      1TL2110010 5/813 3/41
      1 1/2TL3110510 5/813 3/41 1/8
      2TL4212010 5/813 3/41 3/8
      3TL6213010 5/813 3/41 3/8
      5TL10316511 1/414 3/81 3/8
      Electric hoist dimensions

      ​

      Headroom clearances

      CapacityModelHook mount*Low headroom lug*
      Hoist onlyw/ electric trolleyw/ manuel trolleyw/ electric trolleyw/ nova trolley
      1/4TL0518 7/823 1/823 3/820 1/819 5/8
      1/2TL118 7/823 1/823 3/820 1/819 5/8
      1TL218 7/823 1/82420 1/820
      1 1/2TL321 1/22627 1/422 3/823 1/8
      2TL425 1/429 3/431 1/425 3/826 1/8
      3TL625 1/43131 1/426 1/826 3/4
      5TL1030 1/236 3/439 1/831 3/433 1/4

      *  Excluding chain guide. Chain guide adds 5 inches to the headroom and is installed by default on hoists with linear chain speed ≥ 33 fpm, otherwise optional. Unlike the chain guide, the safety stop only adds up to 1 3/8 inches to the headroom.

      Motor option

      MotorM (in.)**
      3/4 HP, 1 phase10 1/8
      1 1/2 HP, 1 phase11 1/8
      2 HP, 1 phase11 1/4
      1 HP, 3 phases9 1/2
      2 HP, 3 phases11
      3 HP, 3 phases11
      4 1/2 HP, 3 phases11 7/8
      2HP 2 speeds, 3 phases11 7/8
      3HP 2 speeds, 3 phases11 7/8

      ** Motors with a fan will be approximately 1 ¼ inch longer

      Electric hoist motor dimensions

      ​

      Single speed models
      CapacitySpeed1 Phase3 Phases
      115 V.230 V.HP230 V460 VHP575 VHP
      1/4T
      1 FALL      		08L05A08 3/4
      10 L05F103/4L05H10L05T101L05V101
      14L05A14 3/4
      16 L05F163/4L05H16L05T161L05V161
      20L05A20L05F201 1/2L05H20L05H202L05V202
      26L05A26L05F261 1/2
      28   L05H28L05T282L05V282
      33L05A33L05F331 1/2L05H33L05T332L05V332
      40L05A40L05F401 1/2L05H40L05T402L05V402
      52L05A52L05F521 1/2L05H52L05T522L05V522
      1/2T
      1 FALL      		08L1A08 3/4
      10 L1F103/4L1H10L1T101L1V101
      14L1A14 3/4L1H13L1T131L1V131
      16 L1F163/4L1H16L1T161L1V161
      20L1A20L1F201 1/2L1H20L1T202L1V202
      26L1A26L1F261 1/2
      28   L1H28L1T282L1V282
      33L1A33L1F331 1/2L1H33L1T332L1V332
      40 L1F402L1H40L1T402L1V402
      52   L1H52L1T522L1V522
      1T
      1 FALL      		07L2A07L2F073/4
      10   L2H10L2T101
      14 L2F141 1/2L2H14L2T142L2V142
      20 L2F202L2H20L2T202L2V202
      27      L2V272
      33   L2H33L2T334 1/2L2V333
      40   L2H40L2T404 1/2L2V403
      52   L2H52L2T524 1/2L2V524 1/2
      1 1/2T
      1  FALL      		07 L3F071 1/2
      13 L3F132L3H13L3T132L3V132
      20   L3H20L3T204 1/2L3V203
      26   L3H26L3T264 1/2L3V264 1/2
      33   L3H33L3T334 1/2L3V334 1/2
      2T
      2  FALLS      		04L4A04L4F043/4
      06   L4H06L4T062L4V062
      10 L4F102L4H10L4T102L4V102
      13 L4F132
      15   L4H15L4T152L4V152
      20   L4H20L4T204 1/2L4V203
      26   L4H26L4T264 1/2L4V264 1/2
      3T
      2  FALLS      		04 L6F042
      05   L6H05L6T052L6V052
      09   L6H09L6T094 1/2L6V094 1/2
      15   L6H15L6T154 1/2L6V154 1/2
      20   L6h20L6T204 1/2L6V204 1/2
      3T
      3  FALLS      		07 L6F072
      5T
      3 FALLS      		02L10A02L10F021 1/2
      05 L10F052L10H05L10T054 1/2L10V053
      10   L10H10L10T104 1/2L10V104 1/2
      13   L10H13L10T134 1/2L10V134 1/2
      10T
      6 FALLS      		07   L20H07L20T072x 4 1/2L20V072x 4 1/2
      15T
      10 FALLS      		04   L30H04L30T042x 4 1/2L30V042x 4 1/2
      15MT (16,5T)
      10 FALLS      		04   L33H04L33T042x 4 1/2L33V042x 4 1/2
      Dual speeds models
      Capacity Speed 3 Phases
      High Low 230 V 460 V 575 V HP
      1/4T
      1 FALL      		 13 4,3 L05H13X2 L05T13X2 L05V13X2 2
      20 6,7 L05H20X2 L05T20X2 L05V20X2 2
      26 8,7 L05H26X2 L05T26X2 L05V26X2 2
      33 11,0 L05H33X2 L05T33X2 L05V33X2 2
      40 13,3 L05H40X2 L05T40X2 L05V40X2 2
      52 17,3 L05H52X2 L05T52X2 L05V52X2 2
      1/2T
      1 FALL      		 07 2,3 L1H07X2 L1T07X2 L1V07X2 2
      13 4,3 L1H13X2 L1T13X2 L1V13X2 2
      20 6,7 L1H20X2 L1T20X2 L1V20X2 2
      26 8,7 L1H26X2 L1T26X2 L1V26X2 2
      33 11,0 L1H33X2 L1T33X2 L1V33X2 2
      40 13,3 L1H40X2 L1T40X2 L1V40X2 3
      52 17,3 L1H52X2 L1T52X2 L1V52X2 3
      1T
      1 FALL      		 07 2,3 L2H07X2 L2T07X2 L2V07X2 2
      13 4,3 L2H13X2 L2T13X2 L2V13X2 3
      20 6,7 L2H20X2 L2T20X2 L2V20X2 3
      26 8,7 L2H26X2 L2T26X2 L2V26X2 3
      1 1/2T
      1 FALL      		 13 4,3 L3H13X2 L3T13X2 L3V13X2 3
      2T
      2 FALLS      		 10 3,3 L4H10X2 L4T10X2 L4V10X2 3
      13 4,3 L4H13X2 L4T13X2 L4V13X2 3
      3T
      2 FALLS      		 07 2,3 L6H07X2 L6T07X2 L6V07X2 3
      Safety Stop

      Safety Stop, protects you teams and your profits !

      In order to increase the safety of the hoist, the Vulcan engineering team has developed a second safety device to be installed in addition to the limit switch. This additional measure is intended to increase protection and safety when using the hoist.

      The Vulcan hoist safety device, called Safety Stop, is a completely new innovation. It replaces the chain guide on single and double fall hoists and is designed to prevent collisions caused by obstacles such as the hook or knots on the chain. The Safety Stop consists of two springs through which the chain passes and a balance.

      How it works

      If an obstacle comes into contact with the Safety Stop, the spring compresses to absorb the impact, causing the balance to pivot. This rotation activates a switch that immediately stops the high or low signal from the pendant or radio controller, depending on which side of the Safety Stop is activated. This series of steps ensures that no obstacles on the chain can collide with the hoist.

      Once the chain is stopped, simply run it in the opposite direction and the balance will return to its original position.
