Reference
NPRxxT-xxOLP
The Nova Plus Ratchet Puller builds on the known reliability of the Nova line with enhanced safety features and a more rugged construction. It includes a free-running mechanism for controlled handling, a forged end ring for secure anchoring, and a heat-treated alloy steel chain for high wear resistance. Compact and ergonomic, it’s a smart, durable tool for lifting, pulling, or tensioning in demanding industrial or maintenance environments.
- 0.75t to 3t
- Zinc-plated load chain
- 2-YEAR WARRANTY
- Overload protection included
- Complies with ASME B30.21
Request a quote
Description
ROBUST
- Heavy-duty design and construction
- Additional load bearing plate for increased strength

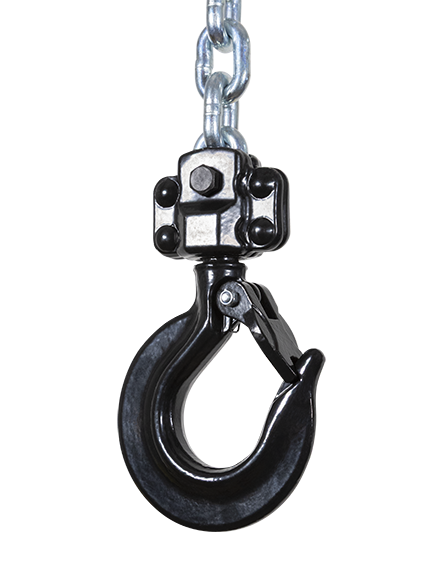

- Alloy steel hook with cast safety latch for increased wear resistance
- Highly resistant one-piece friction disc and ratchet

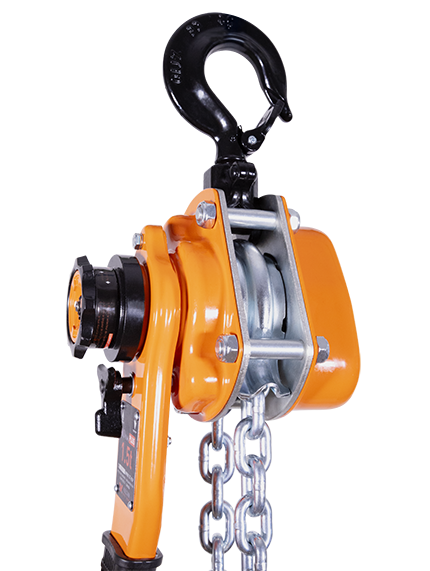

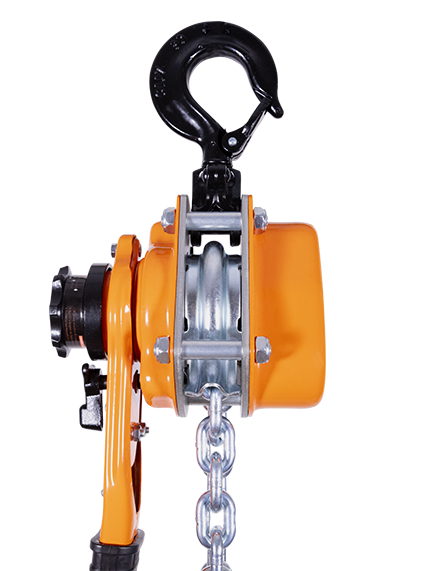

- Zinc-plated load chain, chain guide and side plates for improved corrosion resistance.
HANDY
- Hook attachment point for easy transportation
- Compact, ergonomic handle ideal for confined spaces

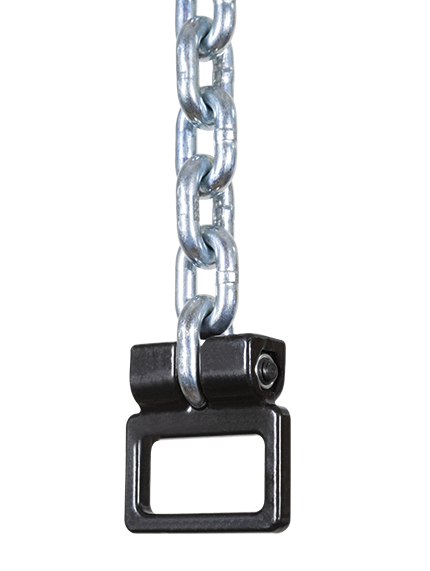

- Ergonomic forged end ring.
SAFE
- Incorporates a free running mechanism that ensures secure load handling without unintentional release
- Heat treated, electro welded alloy steel load chain for superior strength and wear resistance
- Overload limiter designed to protect both the user and the equipment.
Dimensions & technical specifications
| ||||||||||||
| Model | Capacity, t [lb] | Force to lift max load, kg [lbf] | Load chain ø x pitch mm [in] | Net weight kg [lb] | Extra weight/lift kg/m [lb/ft] | Dimensions, mm [in] | ||||||
| A | B | C | H min | L | K** | D | ||||||

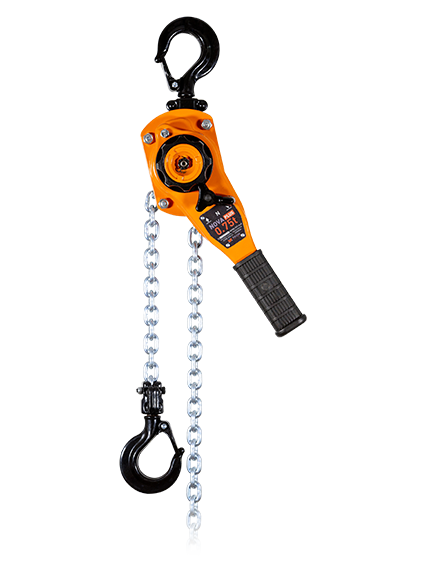

NPR0.75T | 0.75 [1763] | 15 [33.1] | 6 x 18 [0.236 x 0.709] | 7.1 [15.6] | 0.8 [0.54] | 160 [6.30] | 100 [3.94] | 133 [5.24] | 320 [12.6] | 250 [9.84] | 26 [1.024] | 40 [1.575] |

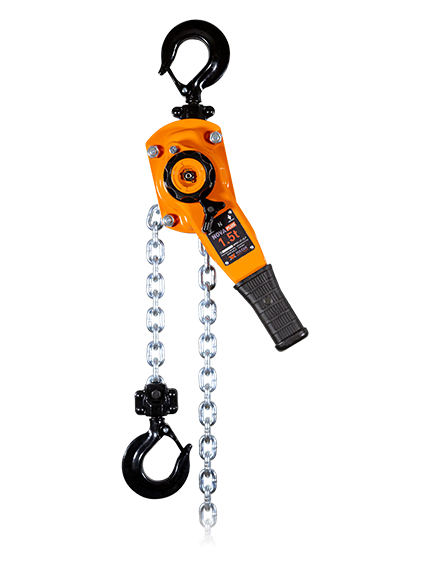

NPR01.5T | 1.5 [3306] | 30 [66.1] | 8 x 24 [0.315 x 0.945] | 10.8 [23.8] | 1.4 [0.94] | 182 [7.17] | 109 [4.29] | 157 [6.18] | 380 [14.96] | 270 [10.3] | 29 [1.142] | 46 [1.772] |

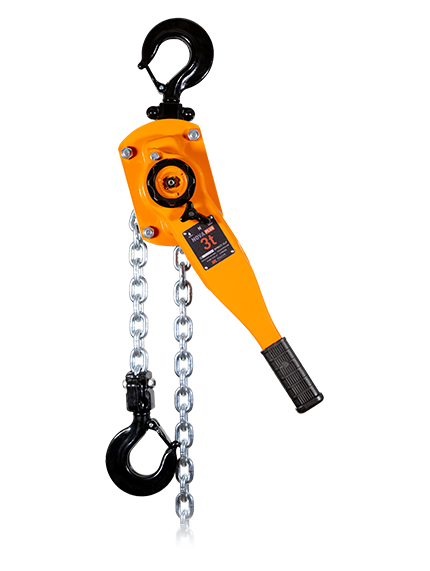

NPR03T | 3.0 [6613] | 31 [68.3] | 10 x 30 [0.394 x 1.181] | 23.3 [51.4] | 2.2 [1.48] | 208 [8.17] | 122 [4.80] | 210 [8.27] | 490 [19.29] | 430 [16.93] | 39 [1.535] | 55 [2.165] |
