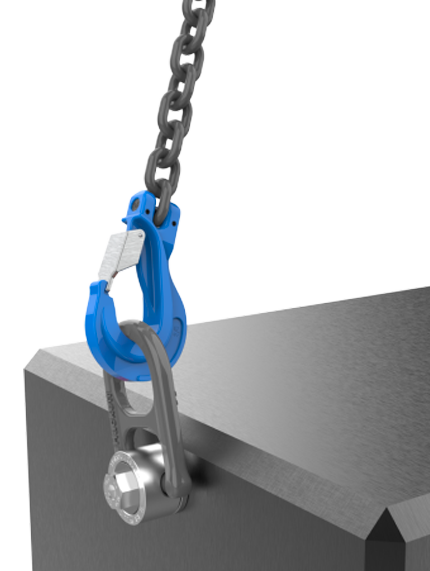

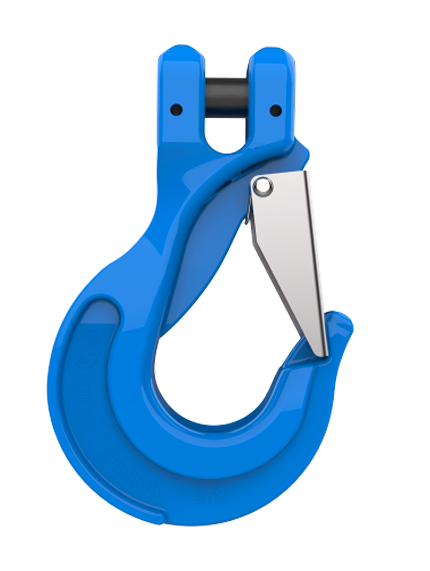

The Hack10 clevis sling hook features a generous hook aperture and bowl, making it a versatile hook type suited for a variety of chain sling applications. This hook is capable of attachment directly onto chain thanks to its clevis attachment type. Manufactured from alloy steel, the Hack10 clevis sling hook is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter chain sling. Grade 10 and Grade 100 refer to the same high-performance alloy.
The Hack10 clevis sling hook has been independently verified and awarded the DGUV Test H-Mark for lifting components, issued under number H83.
- Alloy steel
- Safety factor 4:1
- Operational temperature - 40°C to + 200°C
- EN1677-1
- ASTM A952/A952M (grade 100)
- DIN PAS 1061 (grade 10)
Documentation
| ||||||||||||

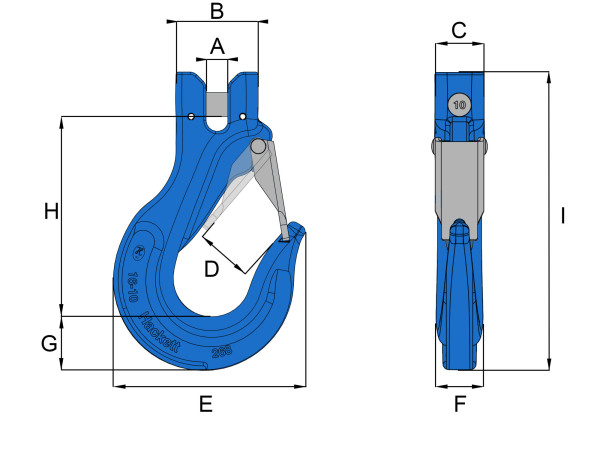

| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | |||||||||
| Chain size | A | B | C | D | E | F | G | H | I | |||
| 10-H04-06 | 3200 [1.4] | 0.66 [0.30] | 7/32 [6] | 0.31 [8.0] | 1.12 [28.5] | 0.71 [18.0] | 0.91 [23] | 2.60 [66] | 0.61 [15.5] | 0.75 [19] | 3.11 [79.0] | 4.41 [112.0] |
| 10-H04-08 | 5700 [2.5] | 1.30 [0.59] | 5/16 [8] | 0.35 [9.0] | 1.38 [35.0] | 0.91 [23.0] | 1.06 [27] | 3.35 [85] | 0.79 [20.0] | 0.98 [25] | 3.91 [99.3] | 5.51 [140.0] |
| 10-H04-10 | 8800 [4.0] | 2.62 [1.19] | 3/8 [10] | 0.47 [12.0] | 1.73 [44.0] | 1.00 [25.5] | 1.30 [33] | 4.06 [103] | 0.94 [24.0] | 1.10 [28] | 4.76 [121.0] | 6.85 [174.0] |
| 10-H04-13 | 15000 [6.7] | 5.11 [2.32] | 1/2 [13] | 0.59 [15.0] | 2.24 [57.0] | 1.34 [34.0] | 1.57 [40] | 5.24 [133] | 1.50 [38.0] | 1.50 [38] | 5.81 [147.6] | 8.41 [213.6] |
| 10-H04-16 | 22600 [10.0] | 8.71 [3.95] | 5/8 [16] | 0.73 [18.5] | 2.64 [67.0] | 1.63 [41.5] | 1.73 [44] | 6.34 [161] | 1.63 [41.0] | 1.61 [41] | 6.54 [166.0] | 9.65 [245.0] |
