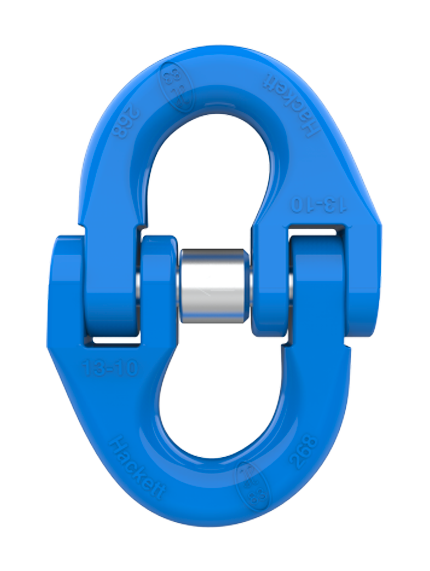

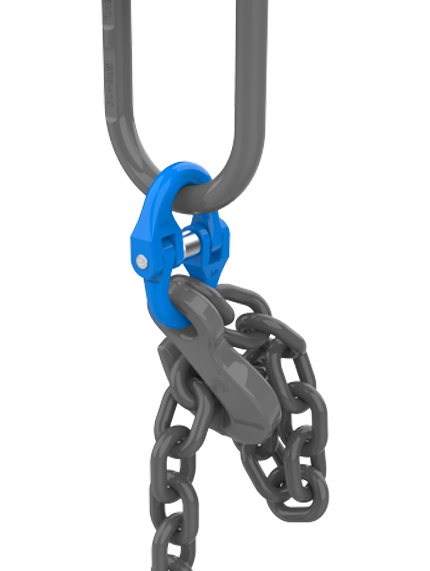

The Hack10 connector is a core component within any Hackett grade 10 chain sling assembly. As its name suggests, it connects lengths of chain to both master links and sub assemblies, as well as various end fittings such as shackles and eye hooks. Manufactured from alloy steel, the Hack10 connector is 25% stronger than a grade 8 equivalent, delivering a greater working load limit without the need for a larger diameter chain sling. Grade 10 and Grade 100 refer to the same high-performance alloy.
The Hack10 connector has been independently verified and awarded the DGUV Test H-Mark for lifting components, issued under number H83.
- Alloy steel
- Safety factor 4:1
- Operational temperature - 40°C to + 200°C
- EN1677-1
- ASTM A952/A952M (grade 100)
- DIN PAS 1061 (grade 10)
Documentation
| |||||||||||

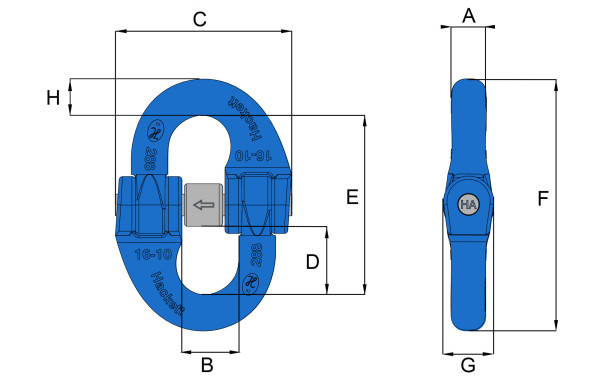

| Part code | WLL lbs [tonnes] | Mass lbs [kg] | Dimensions in [mm] | ||||||||
| Chain size | A | B | C | D | E | F | G | H | |||
| 10-H03-06 | 3200 [1.4] | 0.18 [0.08] | 7/32 [6] | 0.28 [7.0] | 0.55 [14] | 1.57 [40] | 0.63 [16] | 1.75 [44.5] | 2.44 [62] | 0.47 [12] | 0.34 [8.6] |
| 10-H03-08 | 5700 [2.5] | 0.40 [0.18] | 5/16 [8] | 0.39 [10.0] | 0.73 [18.5] | 2.09 [53] | 0.94 [24] | 2.48 [63.0] | 3.31 [84] | 0.55 [14] | 0.41 [10.5] |
| 10-H03-10 | 8800 [4.0] | 0.75 [0.34] | 3/8 [10] | 0.50 [12.6] | 0.91 [23.0] | 2.52 [64] | 1.10 [28] | 2.80 [71.0] | 3.82 [97] | 0.71 [18] | 0.50 [12.8] |
| 10-H03-13 | 15000 [6.7] | 1.57 [0.71] | 1/2 [13] | 0.65 [16.5] | 1.10 [28.0] | 3.19 [81] | 1.34 [34] | 3.64 [92.5] | 4.96 [126] | 0.91 [23] | 0.65 [16.6] |
| 10-H03-16 | 22600 [10.0] | 2.69 [1.22] | 5/8 [16] | 0.79 [20.0] | 1.32 [33.5] | 4.06 [103] | 1.54 [39] | 4.19 [106.5] | 5.71 [145] | 1.18 [30] | 0.82 [20.8] |
