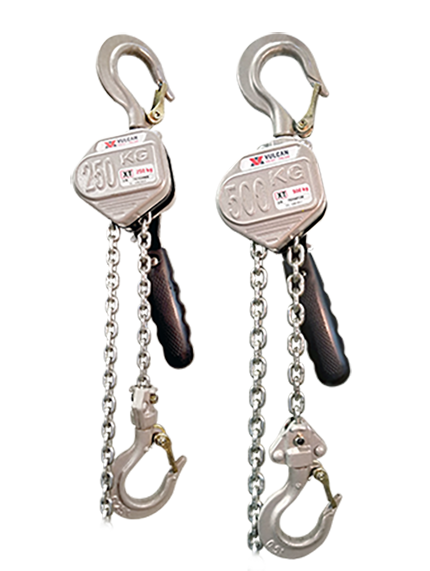

The Vulcan XT Mini Ratchet Puller is a compact lever hoist engineered for precision tasks where space is limited and control is critical. Featuring a 360-degree rotating handle, forged steel hooks, and a lightweight aluminum body, it’s designed for quick adjustments, tensioning, and lifting in tight or overhead locations. With models weighing under 3 kg, it offers the perfect balance of portability, durability, and handling.
- 0.25T to 3T capacities
- 2-year warranty
- Meets ASME B30.21
- Complete nameplate with serial number
- 150% test load
- Testing and inspection certificate included
A technologically advanced, compact, light and sturdy lifting equipment
Easy to handle
- Top and bottom hooks rotate 360 degrees
- Ultra-short 360-degree handle rotation
Safe
- Ultra-robust fork-type cast-steel safety latch
Weatherproof
- Zinc-plated grade 100 chain
5-gear and 2-catch gear reduction system for superior performance. Most 250 kg ratchet pullers only use 2 gears and 1 catch.
4 links load sprocket for better performance and stability.
Main parts and gears are made of heat-treated alloy steel and cover made of aluminium alloy steel .
Moving parts coated with high-performance Li-MoS2 (molybdenum disulfite) grease for optimal use in high & low temperature environments.
| MODEL | Capacity (tons) | Safe working load | Test load 150% | Standard lift | Nb. of chain falls | Pulling effort | Net weight | Chain | Extra weight / ft |
| lb | lb | ft | lb | lb | mm | lb | |||
| XPU0.25T | 0.25 | 551 | 827 | 5 | 1 | 65 | 3.2 | 3.2 | 0.15 |
| XPU0.5T | 0.5 | 1 102 | 1 653 | 5 | 1 | 60 | 5.5 | 4.3 | 0.25 |

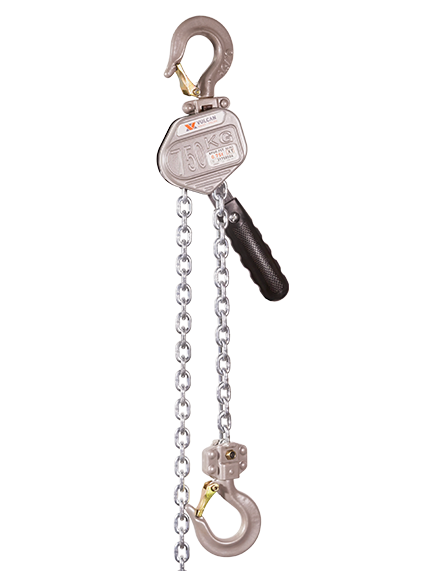

| XPU0.75T | 0.75T | 1653 | 2480 | 5 | 1 | 74 | 7.5 | 5 | 0.36 |
| XPU1.5T | 1.5T | 3306 | 4959 | 5 | 2 | 94 | 13.8 | 7.4 | 0.74 |
| XPU03T | 3T | 6613 | 9919 | 5 | 2 | 96 | 20 | 7.1 | 1.48 |
| Carry bag
| ||||||||||||||||
| ||||||||
| MODEL | Dimensions, mm [in] | |||||||
| A | B | C | D | Hmin | K | L | T | |
| XPU0.25T | 87 [3.43] | 55.5 [2.19] | 68 [2.68] | 32 [1.26] | 200 [7.87] | 21 [0.83] | 145 [5.71] | 11 [0.43] |
| XPU0.5T | 100.5 [3.96] | 62.5 [2.46] | 81 [3.19] | 34.5 [1.36] | 250 [9.84] | 24.5 [0.96] | 160 [6.30] | 12 [0.47] |
| XPU0.75T | 105 [4.13] | 64 [2.52] | 92 [3.62] | 35.5 [1.40] | 260 [10.24] | 28.5 [1.12] | 180 [7.09] | 14 [0.55] |
| XPU1.5T | 122 [4.80] | 68.5 [2.70] | 109 [4.29] | 42.5 [1.67] | 330 [12.99] | 35 [1.38] | 220 [8.66] | 21.5 [0.85] |
| XPU03T | 122 [4.80] | 68.5 [2.70] | 160 [6.30] | 50 [ 1.97] | 432 [17.01] | 43 [1.69] | 220 [8.66] | 24.5 [0.96] |
