Nova trolley

Reference
NPTxxT & NGTxxT
Nova trolley
  • One year warranty
  • Meets ASME B30.11

Request a quote

Request a quote in less than 5 minutes!

Documentation

File
File

Description

Nova push and gear trolleys, great money-value.

  • Drop stops and bumpers
  • Cast iron wheels
  • Ball bearing
  • Universal wheels ½ - 10T (I & H)
    20T for I-beam only or H-beam only
Models & dimensions

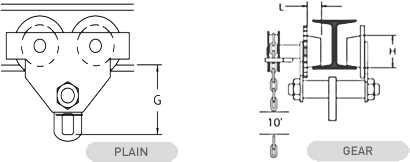

Nova trolley dimensions
MODEL Cap.  tons Dimensions in Net  weight
G
Headroom
Beam** Min.
Height
Beam** Width
(flange)
H
Wheel Tread dia.
L
Tread Width
Radius of
curve min.**
Plain Gear*
10'chain
Plain Gear* Min. Max. lb
NPT1/2T NGT1/2T 1/2 4 7/16 3 2  1/2 6 2  1/4 1 36 16 27
NPT1T NGT1T 1 5 1/8 4 2  3/4 6 2 15/16 1 1/8 40 28 38
NPT1.5T NGT1.5T 1 1/2 5 3/4 5 3  1/8 6  3/4 3 5/16 1 1/8 48 42 51
NPT2T NGT2T 2 6    5 3  1/8 6  3/4 3 1/2 1 5/16 49 46 55
NPT3T NGT3T 3 7 1/4 5 3  5/8 8 1/2 4 5/16 1 7/16 60 81 93
NPT5T NGT5T 5 8 5/8 6 4  1/8 8 1/2 4 13/16 1  3/4 79 118 133
NPT10T NGT10T  10 10 3/4 8 4  1/2 8 1/2 5 15/16 1  7/8 87 213 226
- NGT20T 20 12 10 7 11 1/2 7  3/4 2  7/8 111 513 536



Notes

Specify beam height & width or  height & lb per ft

*

When used w/electric hoist, hand chain wheel extension required & hoist must be parallel to beam

**

May vary depending on the size of the beam

Trolleys beam note
