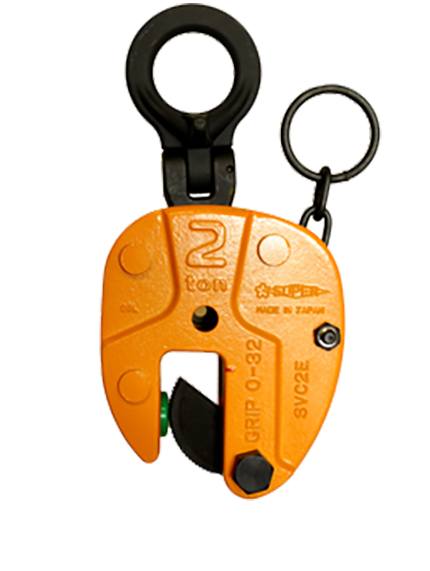

Vertical lifting Clamp with universal shackle (SVC-E)

  • Vertical lifting clamp with universal shackle (SVC-E)
    Reference
    SVCxxE
    SUSVC-0.5E

    Made in Japan, the Supertool SVC-E Vertical Lifting Clamp is equipped with a universal shackle for greater flexibility in lifting angles and rigging configurations. Its self-locking cam system ensures a firm grip on steel plates during vertical hoisting, while the reinforced frame offers exceptional durability. Ideal for dynamic industrial environments where lifting direction can vary and adaptability is key.

    • 2 year warranty
    • The structural parts are Die-forged.
    • Tested at 300% of the rated load
    • Meets ASME B30.20
    • Meets ASME BTH-1 Design Category A
    • Meets ASME BTH-1 Service Class 0

    Documentation


    Description

    Lightweight clamp primarily designed for the vertical lifting of steel plates. The unique design of this clamp also makes it possible for lifting work piece to any directions.

    • The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled.
    • The spring-loaded tightening lock mechanism assures a positive initial clamping force.
    • The clamping force increases in proportion to the weight of the load.
    • The main body and the shackle are made of die-forging which is optimally tempered for maximum strength and durability.
    • High-frequency quenching of special alloy steels gives greater durability to the cam.
    • The main body is a baked-on finished.

    Example of use

    Example of use
    Example of use
    Example of use
    Example of use
    Example of use
    Example of use
    Example of use

    Models
    ModelCapacity (ton)Jaw OpeningNet weight
    mm [in]kg [lb]
    SUSVC-0.5E0.5019 [0.748]2.1 [4.6]
    SUSVC-1E1025 [0.984]3.7 [8.2]
    SUSVC-2E2032 [1.260]7 [15.4]
    Dimensions
    VERTICAL LIFTING CLAMP WITH UNIVERSAL SHACKLE (SVC-E) - Dimensions
    ModelCapacity (ton)Dimensions mm [in]
    LL1L2H (Max)H1H2H3H4DD1TT1T2T3
    SUSVC-0.5E0.5110
    [4.331]    		28
    [1.102]    		22
    [0.866]    		204
    [8.031]    		125
    [4.921]    		67
    [2.638]    		53
    [2.087]    		34
    [1.339]    		52
    [2.047]    		30
    [1.181]    		55.5
    [2.185]    		45
    [1.772]    		40
    [1.575]    		10
    [0.394]
    SUSVC-1E1130
    [5.118]    		35
    [1.378]    		29
    [1.142]    		257
    [10.118]    		160
    [6.299]    		80
    [3.150]    		60
    [2.362]    		38
    [1.496]    		60
    [2.362]    		35
    [1.378]    		67.5
    [2.657]    		53
    [2.087]    		48
    [1.890]    		12
    [0.472]
    SUSVC-2E2162
    [6.378]    		43
    [1.693]    		37
    [1.457]    		335
    [13.189]    		194
    [7.638]    		97
    [3.819]    		73
    [2.874]    		45
    [1.772]    		94
    [3.701]    		55
    [2.165]    		82
    [3.228]    		83
    [3.268]    		58
    [2.283]    		16
    [0.630]
