Reference
NUCxxT

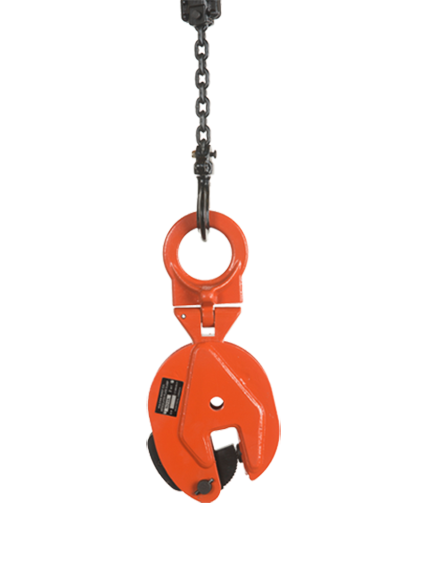

The Nova NUC Universal Clamp is designed for multi-directional lifting, offering flexibility in both vertical and horizontal orientations. Its swiveling lifting eye and secure cam mechanism allow for easy adaptation to various load shapes and positions. Built for versatility in fabrication shops, maintenance settings, and field use, the NUC delivers dependable clamping strength without the need to change tools for different lifting angles.
- One year warranty
- All steel robust construction
- Compact size and light weight
- Heavy duty industrial plate clamp
- Latch locks in closed & opened positions, to easily position the clamp
- Eye hinge to allow pulling & lifting
Models
Dimensions
| ||||||||||||
| Cap. Tons | Dimensions in | |||||||||||
| A | B | C | D | E | F | G | H | I | L | K | L | |
| 0.8 | 8.07 | 4.92 | 5.91 | 2.17 | 0.49 | 1.18 | 4.13 | 1.85 | 1.26 | 1.46 | 0.39 | 1.89 |
| 1 | 11.82 | 6.69 | 8.46 | 3.35 | 0.65 | 1.97 | 5.71 | 2.60 | 1.77 | 2.48 | 0.47 | 2.60 |
| 2 | 15.16 | 8.07 | 10.43 | 4.72 | 0.87 | 2.68 | 6.89 | 3.07 | 2.20 | 2.91 | 0.67 | 2.95 |
| 3 | 16.93 | 9.33 | 11.61 | 5.31 | 1.14 | 2.95 | 8.46 | 4.41 | 2.36 | 3.31 | 0.79 | 4.02 |
| 5 | 19.69 | 10.31 | 13.78 | 5.91 | 1.38 | 2.68 | 9.13 | 4.88 | 2.56 | 3.54 | 0.79 | 4.41 |
