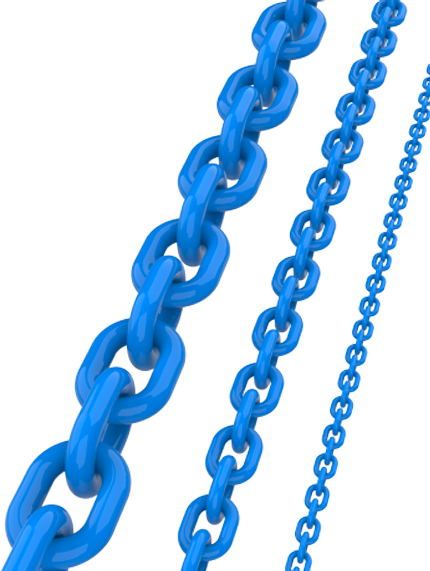

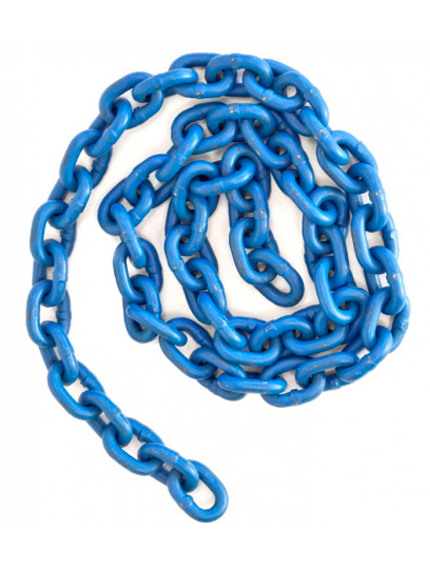

William Hackett Grade 10 Lifting Chain is manufactured by our supply chain partner Mckinnon chain in South Africa. The Grade 10 chain is embossed with manufacturer's mark and grade (MA10) and class leading batch code traceability. All sizes for the William Hackett Grade 10 are proof tested at manufacture to 2.5 times the given working load limit and have a range of diameters from 6mm - 32mm (7/32" to 5/8"). The Hackett Grade 10 chain is suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit, reductions apply up to 400°C. Grade 10 and Grade 100 refer to the same high-performance alloy.
- Safety factor 4:1
- Available from 6mm to 16mm (7/32" to 5/8")
- Operational temperature - 40°C to + 200°C
- Follows ASTM A973/A973M (grade 100)
Documentation
| ||||||

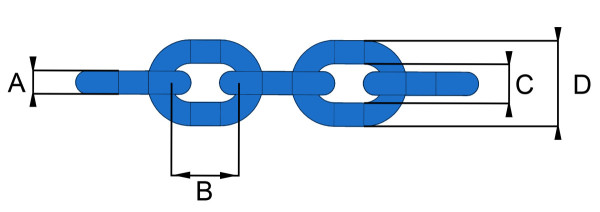

| Part code | WLL lbs [tonnes] | Lbs per ft [Kgs per meter] | Chain size in [mm] | |||
| A Nominal | B Nominal | C Minimum | D Maximum | |||
| ASV.060.5 | 3200 [1.4] | 1.04 [0.80] | 7/32 [6] | 0.70 [18] | 0.35 [9.1] | 1.02 [25.9] |
| ASV.080.5 | 5700 [2.5] | 1.59 [1.51] | 5/16 [8] | 0.90 [24] | 0.40 [10.4] | 1.17 [29.6] |
| ASV.100.5 | 8800 [4.0] | 3.31 [2.35] | 3/8 [10] | 1.18 [30] | 0.51 [13.0] | 1.46 [37.0] |
| ASV.130.5 | 15000 [6.7] | 6.61 [3.99] | 1/2 [13] | 1.54 [39] | 0.66 [16.9] | 1.90 [48.1] |
| ASV.160.5 | 22600 [10.0] | 11.24 [5.99] | 5/8 [16] | 1.89 [48] | 0.82 [20.8] | 2.33 [59.2] |
