Reference
ABxxT-xxOLP
Built for heavy-duty lifting, the Vulcan Max Chain Block delivers industrial-grade strength with uncompromising reliability. Its sealed bearing system ensures smooth operation under full load, while the hardened steel construction and Grade 80 chain provide long service life in demanding environments. Designed for overhead lifting in fabrication shops, warehouses, and construction sites, it’s the go-to manual hoist when performance and endurance matter most.
- TWO YEAR WARRANTY
- 0.5T to 10T
- Nickel plated load chain
- Overload protection included
- Complies with ASME B30.16
Description
Robust
- Dual protective cover for better impact protection
- Drop forged steel hook for greater wear resistance
- Cold-forged gear for unsurpassed durability
- Nickel plated load chain and galvanized hand chain for enhanced corrosion resistance
Handy
- Load sheaves with precision ball bearings for minimal lifting effort
Safe
- Dual pawl brake to improve control and enhance safety
- Electrically welded alloy steel chain heat treated for increased wear resistance and strength
- Overload limiter to protect the tool and the users
Dimensions

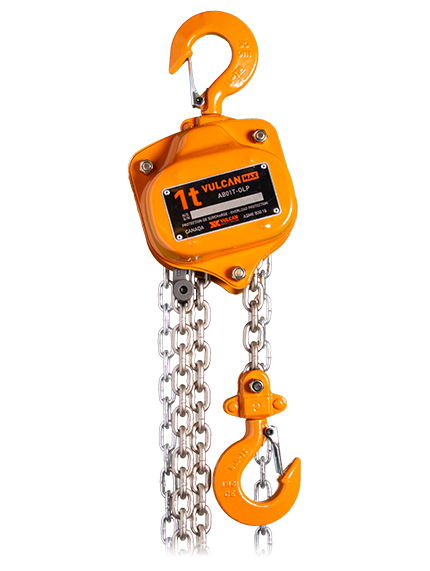

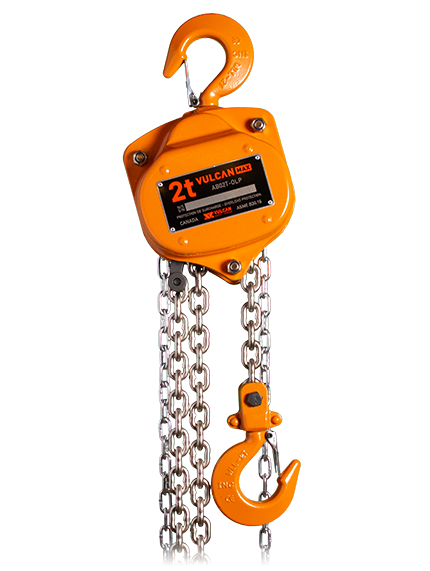

1/2T, 1T, 1.5T and 2T

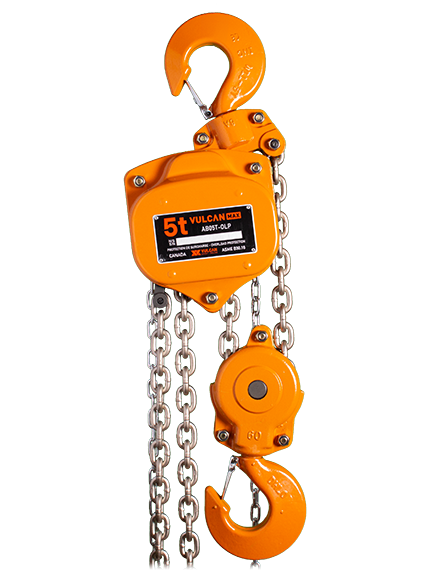

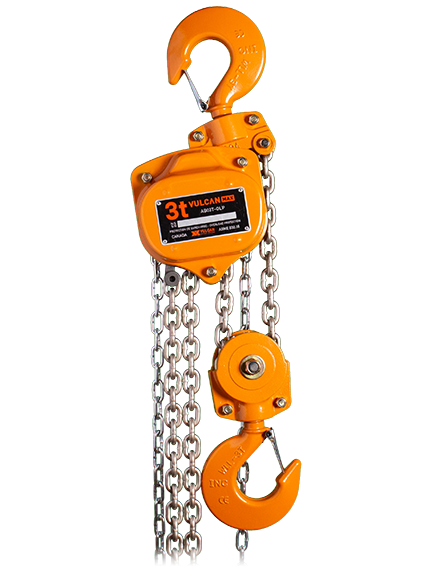

| 3T and 5T
| 10T
| ||||||||
| Capacity Ton [lb] | Force to lift max load kg [lb] | Load chain Ø falls | Mechanical advantage ratio | Hand chain Ø x pitch, mm | Net weight* kg [lb] | Extra weight/lift kg/m [lb/ft] | Dimensions, mm [in] | |||
| A | B | C min | D | |||||||
| 0.5 [1102] | 24 [53] | 6.3 x 1 | 40:1 | 5.0 x 22.8 | 12.0 [26.4] | 1.77 [1.19] | 147 [5.79] | 145 [5.71] | 310 [12.2] | 26 [1.02] |
| 1.0 [2204] | 33 [73] | 13.0 [28.6] | 330 [13.0] | 30 [1.18] | ||||||
| 1.5 3306] | 7.1 x 1 | 60:1 | 15.1 [33.3] | 2.01 [1.35] | 164 [6.46] | 360 [14.2] | 33 [1.30] | |||
| 2.0 [4409] | 7.9 x 1 | 78:1 | 22.1 [48.7] | 2.27 [1.53] | 184 [7.24] | 187 [7.36] | 380 [15.0] | 38 [1.50] | ||
| 3.0 [6613] | 7.1 x 2 | 120:1 | 23.1 [51.0] | 3.11 [2.09] | 147 [5.79] | 2-6 [8.11] | 480 [18.9] | 42 [1.65] | ||
| 5.0 [11023] | 39 [86] | 9.0 x 2 | 186:1 | 41.2 [90.9] | 4.43 [2.98] | 185 [7.28] | 258 [10.16] | 620 [24.4] | 45 [1.77] | |
| 10 [22046] | 41 [90] | 9.0 x 4 | 372:1 | 91.4 [201.5] | 7.95 [5.34] | 367 [14.45] | 820 [32.3] | 53 [2.09] | ||
* For a chain block with 10' of lift.
