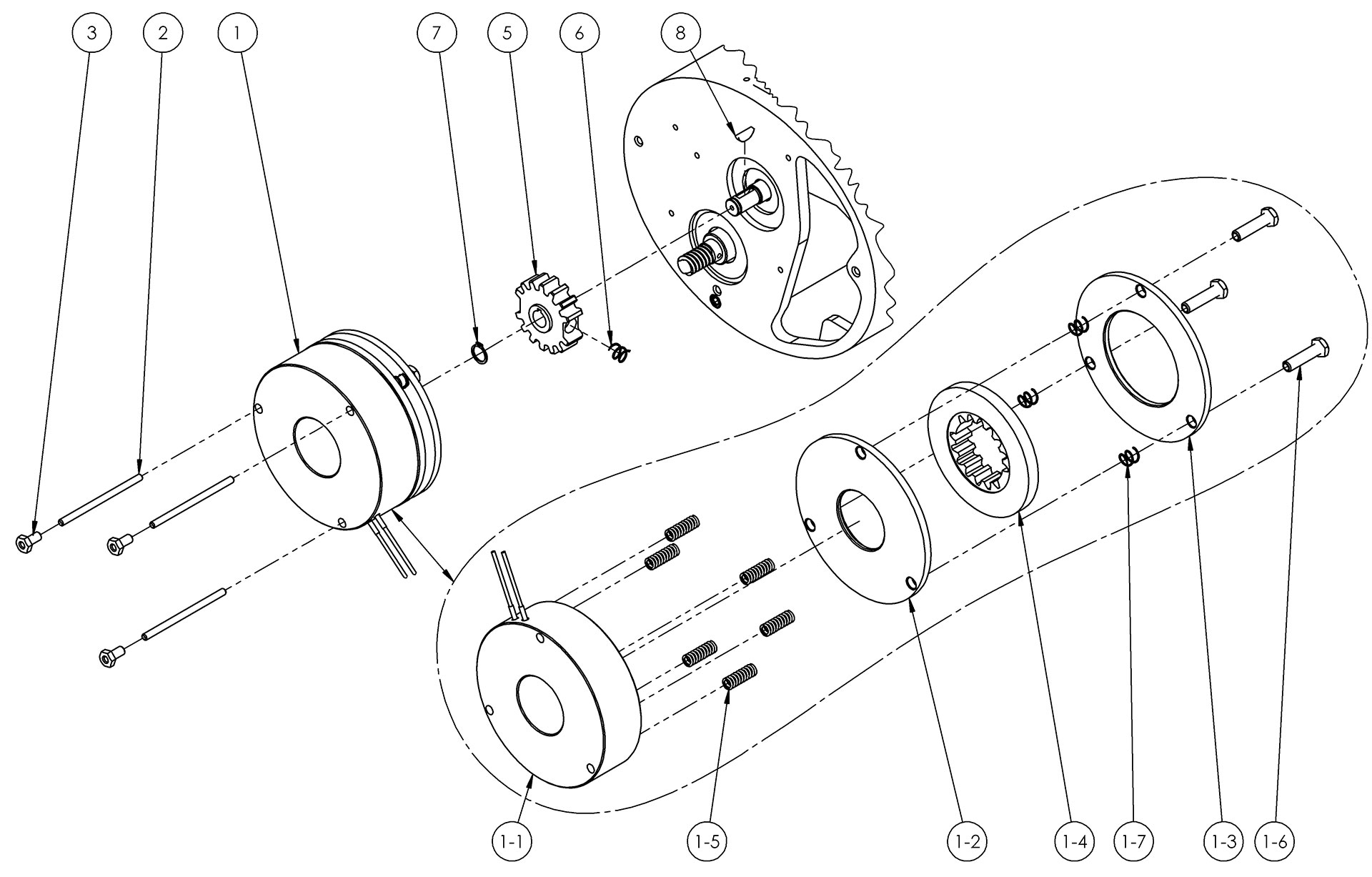

Brake
| Ref. | Sku | Description | Qty |
|---|---|---|---|
| 1 | HOPHL-120KIT | DISC BRAKE ASSEMBLY KIT *SEE ENVELOPE* | 1 |
| 1-1 | HOPHL-120A | COIL BRAKE | 1 |
| 1-2 | HOPHL-122 | ARMATURE PLATE SEE ENVELOPE* | 1 |
| 1-3 | HOPHL-123 | BACK PLATE SEE ENVELOPE* | 1 |
| 1-4 | HOPHL-128 | SEE ENV* FRICTION DISC(128-2006), GEAR HUB(125) AND DRIVE HUB SPRING(125A) | 1 |
| 1-5 | HOPHL-126 | TORQUE SPRING *SEE ENVELOPE* (NEED 6) | 6 |
| 1-6 | HOPHL-124 | ASSEMBLY BOLT *SEE ENVELOPE* (NEED 3) | 3 |
| 1-7 | HOPHL-127 | SEPARATOR SPRING *SEE ENVELOPE* (NEED 3) | 3 |
| 2 | HOPHL-129 | MOUNTING STUD *SEE ENVELOPE* (SEE HAR119) | 3 |
| 3 | HOPHL-130 | MOUNTING BOLTS *SEE ENVELOPE* | 3 |
| 5 | HOPHL-125 | DRIVE HUB *SEE ENVELOPE* | 1 |
| 6 | HOPHL-125A | DRIVE HUB SPRING *SEE ENVELOPE* | 1 |
| 7 | HOPHL-036 | SNAP RING | 1 |
| 8 | HOPHL-037 | WOODRUFF KEY 1/8" x 5/8" | 1 |
