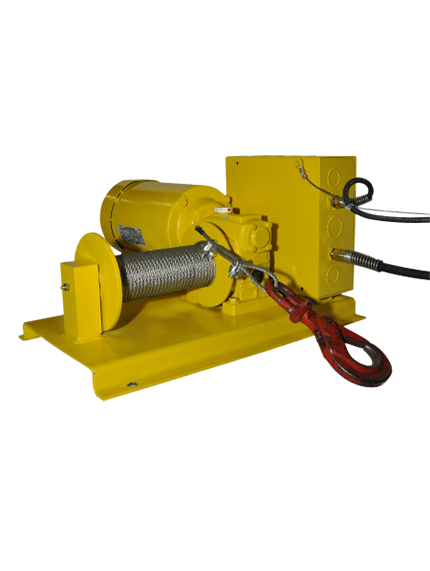

Compact yet powerful, the Vulcan Electric Winch Series 1 is engineered for lighter industrial tasks that still demand reliability and safety. Made in Canada and backed by a two-year warranty, it meets CSA and ASME standards for lifting and pulling. Ideal for maintenance operations, small workshops, or mobile setups, it offers smooth control, long service life, and easy integration into a variety of rigging systems.
- Made in Canada
- 2-year warranty
- Meets and exceeds ASME B30.7 standard
- Custom manufacturing
- Testing and inspection certificate included
| MODEL | STD wire rope dia. |
Motor | Weight | Layers specific parameters | Layer 1 | Layer 2 | Layer 3 | Layer 4 |
| po | hp | lb | ||||||
| WIU-30 | 1/8 | 3/4 | 100 | WLL hauling (lb) | 370 | 340 | 310 | 280 |
| WLL lifting (lb) | 370 | 340 | 310 | 280 | ||||
| Layer wire rope capacity (ft) | 40 | |||||||
| Total wire rope capacity (ft)* | 180 | |||||||
| Line speed (ft/min) | 19 | 20.5 | 22.5 | 24.5 | ||||
| *Total cable capacity is based upon cable diameter shown. Total cable capacity can vary depending on cable diameter chosen. | ||||||||
|
||||||||
BRONZE ALLOY worm gear transmission
DIRECT TRANSMISSION a silent feature that eliminates the need for a conventional drive belt
AERONAUTICS-GRADE STEEL CABLE with unparalleled performance and durability of the cable
COMPACT, STURDY DESIGN for severe industrial applications
IN HOISTING MODE, the automatic electromagnetic break ensures a safe handling of the trolley
MOUNTING on the ground or vertical for better versatility
CORROSION AND WEATHER-PROOF PAINT
