Reference
BLPxx-E##xxSL

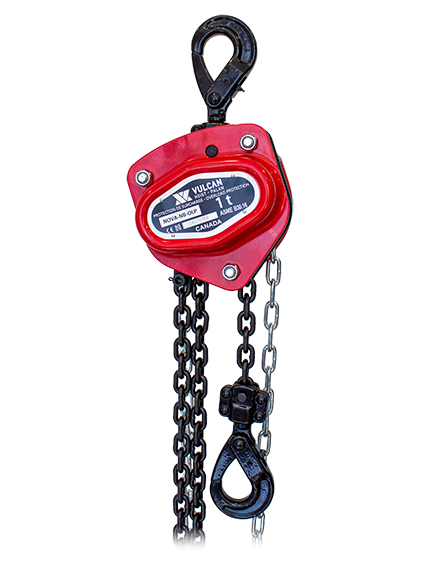

- Available with Nova chain blocks
- Available with Nova ratchet pullers
Request a quote
Chain block upper hook
| ||||||||||
| No. | Capacity (tons) | Dimensions (in) | ||||||||
| A | B | C | D | E | F | G | H | I | ||
| BLPNB1-E#23-SL | 1 | 0.79 | 3.50 | 1.24 | 2.80 | 0.98 | 1.30 | 1.10 | 0.45 | 0.91 |
| BLPNB1.5-E#23-SL | 1.5 | 1.06 | 4.49 | 1.57 | 3.52 | 1.10 | 1.65 | 1.28 | 0.53 | 1.02 |
| BLPNB2-E#23-SL | 2 | 1.06 | 4.49 | 1.57 | 3.52 | 1.10 | 1.65 | 1.28 | 0.53 | 1.02 |
Chain block lower hook
| ||||||||||
| No. | Capacity (tons) | Dimensions (in) | ||||||||
| A | B | C | D | E | F | G | H | I | ||
| BLPNB1-E#07-SL | 1 | 0.79 | 3.50 | 1.18 | 2.80 | 0.98 | 1.30 | 1.10 | 0.45 | 0.91 |
| BLPNB1.5-E#07-SL | 1.5 | 1.06 | 4.49 | 1.25 | 3.52 | 1.10 | 1.65 | 1.28 | 0.53 | 1.02 |
| BLPNB2-E#07-SL | 2 | 1.06 | 4.49 | 1.25 | 3.52 | 1.10 | 1.65 | 1.28 | 0.53 | 1.02 |
Ratchet puller upper hook
|
| ||||||||||
| No. | Capacity (tons) | Dimensions (in) | ||||||||
| A | B | C | D | E | F | G | H | I | ||
| BLPNPU3/4-E#31SL | 0.75 | 0.79 | 3.50 | 1.24 | 2.80 | 0.98 | 1.30 | 1.10 | 0.45 | 0.91 |
| BLPNPU1.5-E#31SL | 1.5 | 1.06 | 4.49 | 1.57 | 3.52 | 1.10 | 1.65 | 1.28 | 0.53 | 1.02 |
Ratchet puller lower hook
|
| ||||||||||
| No. | Capacity (tons) | Dimensions (in) | ||||||||
| A | B | C | D | E | F | G | H | I | ||
| BLPNPU3/4-E#33SL | 0.75 | 0.79 | 3.50 | 1.18 | 2.80 | 0.98 | 1.30 | 1.10 | 0.45 | 0.91 |
| BLPNPU1.5-E#33SL | 1.5 | 1.06 | 4.49 | 1.25 | 3.52 | 1.10 | 1.65 | 1.28 | 0.53 | 1.02 |
