Reference
NPUxxT
- One year warranty
- Meets ASME B30.21
- Overload protection available
Request a quote
Description
Nova ratchet puller. Our most popular puller, built to last.
- Triple spur gear
- Load chain guide
- Single-handed free wheeling
- Heat treated alloy steel chain
- Heat treated steel forged hooks
- Upper and lower latches included
Models
The 0.25T and 0.5T models are designed for pulling applications only. The 0.75T models and up are designed for both pulling and lifting applications.
MODEL | Cap. tons | Safe working load | Test load | Standard lift | No of chain falls | Pulling effort | Net Weight |
lb | tons | ft | lb | lb | |||
NPU0.25T | 1/4 | 550 | 0.3 | 5 | 1 | 56 | 4 |
NPU0.5T | 1/2 | 1 100 | 0.7 | 64 | 9 | ||
NPU0.75T | 3/4 | 1 650 | 1.0 | 31 | 16 | ||
NPU1.5T | 1 1/2 | 3 300 | 1.9 | 54 | 25 | ||
NPU3T | 3 | 6 600 | 3.8 | 72 | 46 | ||
NPU6T | 6 | 13 200 | 7.5 | 2 | 76 | 68 |

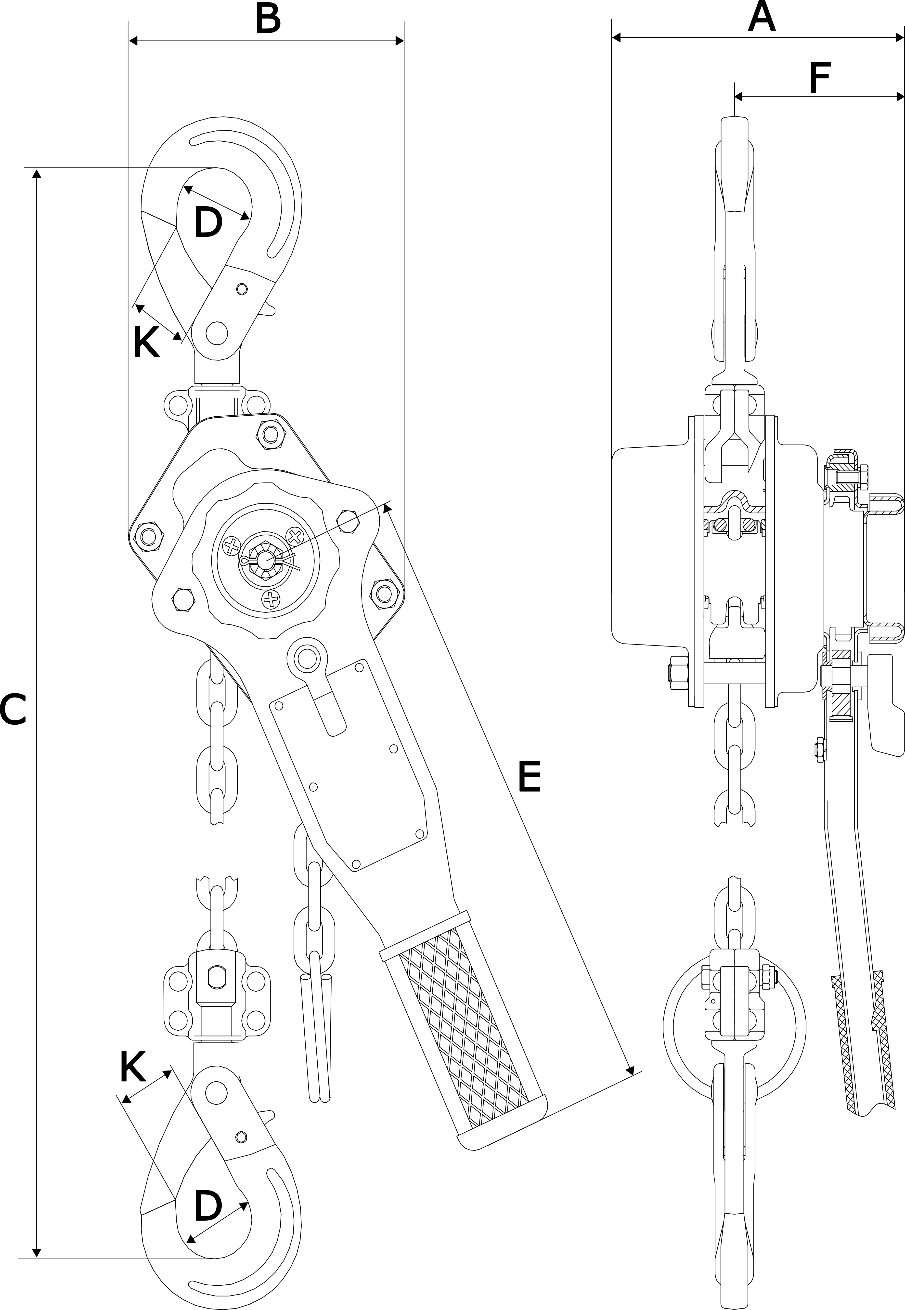

Dimensions
MODEL | Cap. tons | Dimensions (in.) | |||
C | G Headroom | K | L Length of operating handle | ||
NPU0.25T | 1/4 | 3 5/8 | 9 1/16 | 3 11/32 | 6 19/64 |
NPU0.5T | 1/2 | 4 1/8 | 10 1/4 | 3 1/8 | 11 7/8 |
NPU0.75T | 3/4 | 6 1/8 | 12 5/8 | 5 3/8 | 11 1/4 |
NPU1.5T | 1 1/2 | 7 1/8 | 15 | 6 1/8 | 16 1/2 |
NPU3T | 3 | 8 1/2 | 19 | 7 7/8 | 16 1/2 |
NPU6T | 6 | 8 1/2 | 23 3/4 | 7 7/8 | 16 1/2 |
