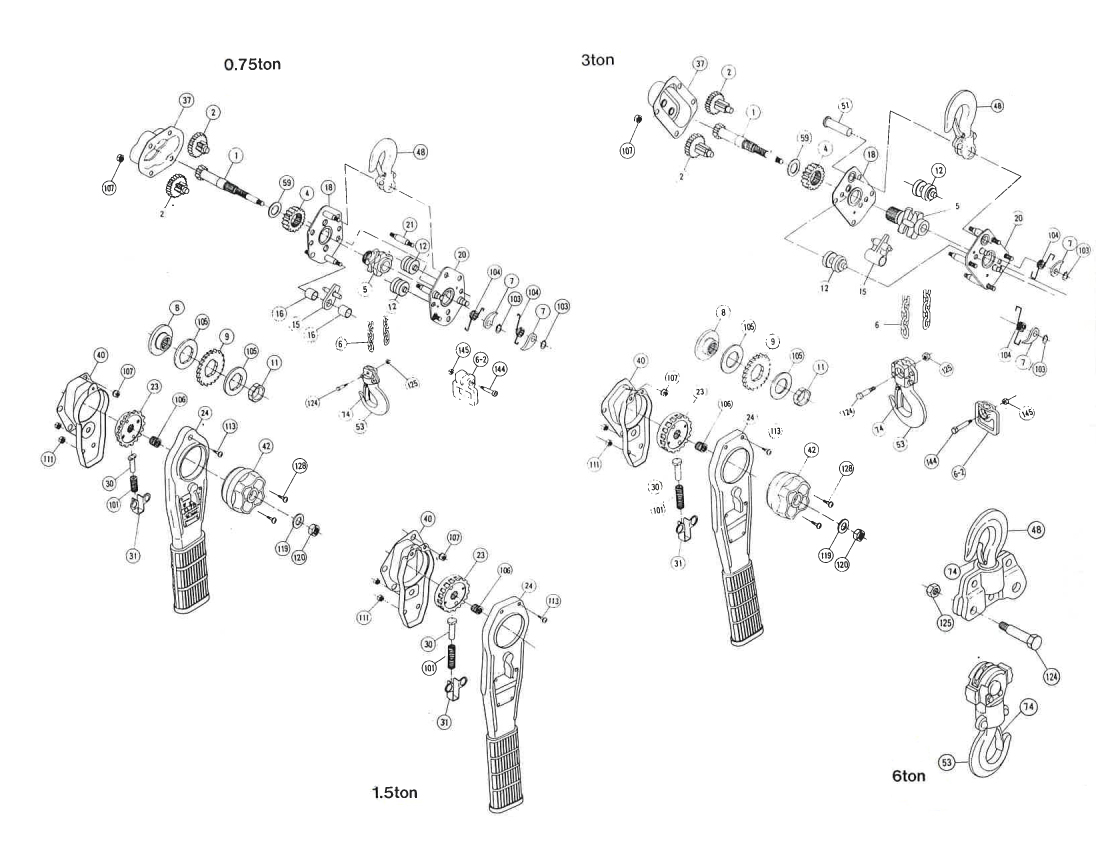

Vulcan ratchet puller 40

Wish to order online?

If you wish to order online, please

Close
Ref.SKUDescriptionQty
1BLPVPU3/4-40#001PINION SHAFT 3/4 T MODEL RB-401
2BLPVPU3/4-40#002PINION W/PINION GEAR 3/4T MODEL RB-402
4BLPVPU3/4-40#004LOAD GEAR 3/4 T MODEL RB-401
5BLPVPU3/4-40#005LOAD SHEAVE 3/4 T MODEL RB-401
6BLPVPU3/4-40#006FT. CHAIN 3/4 T MODEL RB-405
6-2BLPVPU3/4-40#6-2STOP GRIP 3/4 T MODEL RB-401
7BLPVPU3/4-40#007PAWL 3/4 T MODEL RB-402
8BLPVPU3/4-40#008DISC HUB 3/4 T MODEL RB-401
9BLPVPU3/4-40#009RATCHET WHEEL W/2 FRICT. DISCS 3/4T MODEL RB-401
11BLPVPU3/4-40#011INTERLOCKING RING 3/4 T MODEL RB-401
12BLPVPU3/4-40#012CHAIN GUIDE 3/4 T MODEL RB-401
15BLPVPU3/4-40#015STRIPPER 3/4 T MODEL RB-401
16BLPVPU3/4-40#016STRIPPER COLLAR 3/4 T MODEL RB-402
18BLPVPU3/4-40#018GEAR-SIDE PLATE 3/4 T MODEL RB-401
20BLPVPU3/4-40#020HANDLE-SIDE PLATE 3/4 T MODEL RB-401
21BLPVPU3/4-40#021STAY BOLT 3/4 T MODEL RB-401
23BLPVPU3/4-40#023DISC NUT 3/4 T MODEL RB-401
24BLPVPU3/4-40#024OPERATING HANDLE 3/4 T MODEL RB-401
25BLPVPU3/4-40#025RUBBER HANDLE 3/4 T MODEL RB-401
30BLPVPU3/4-40#030SPRING SHAFT 3/4 T MODEL RB-401
31BLPVPU3/4-40#031SHAFT BASE 3/4 T MODEL RB-401
37BLPVPU3/4-40#037GEAR COVER 3/4 T MODEL RB-401
40BLPVPU3/4-40#040RATCHET COVER 3/4 T MODEL RB-401
42BLPVPU3/4-40#042GUIDE HANDLE 3/4 T MODEL RB-401
48BLPVPU3/4-40#048TOP HOOK, YOKE & LATCH 3/4 T MODEL RB-401
51BLPVPU3/4-40#051Yoke pin (see #18)1
53BLPVPU3/4-40#053BOTTOM HOOK/YOKE/LATCH 3/4T MODEL RB-401
59BLPVPU3/4-40#059PINION SHAFT WASHER 3/4 T MODEL RB-401
74BLPVPU3/4-40#074SAFETY LATCH ASSEMBLY 3/4 T MODEL RB-401
101BLPVPU3/4-40#101CHANGE-OVER SPRING 3/4 T MODEL RB-403
103BLPVPU3/4-40#103SNAP RING 3/4 T MODEL RB-402
104BLPVPU3/4-40#104PAWL SPRING 3/4 T MODEL RB-402
105BLPVPU3/4-40#105Friction disc w/ #91
106BLPVPU3/4-40#106FREE-WHEELING SPRING 3/4 T MODEL RB-401
107BLPVPU3/4-40#107SPRING NUT 3/4 T MODEL RB-408
111BLPVPU3/4-40#111SPRING NUT 3/4 T MODEL RB-402
113BLPVPU3/4-40#113SCREW W/SPRING WASHER 3/4 T MODEL RB-402
114BLPVPU3/4-40#114NAME PLATE 3/4 T MODEL RB-401
119BLPVPU3/4-40#119FLAT WASHER 3/4 T MODEL RB-401
120BLPVPU3/4-40#120LOCK NUT 3/4 T MODEL RB-401
124BLPVPU3/4-40#124CHAIN FASTENING BOLT 3/4 T MODEL RB-401
125BLPVPU3/4-40#125LOCK NUT 3/4 T MODEL RB-401
128BLPVPU3/4-40#128SCREW & SPRING WASHER 3/4 T MODEL RB-402
144BLPVPU3/4-40#144SOCKET BOLT 3/4 T MODEL RB-401
145BLPVPU3/4-40#145LOCK NUT 3/4 T MODEL RB-401
