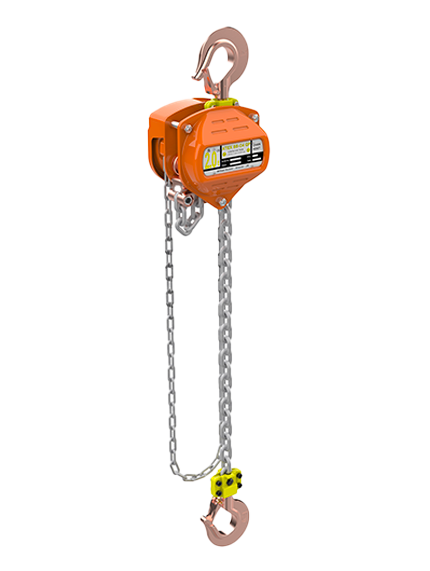

The William Hackett ATEX SS-C4 QP Chain Hoist is designed, manufactured and proof load tested in the UK. It complies with the requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC.
We have analyzed all components of the C4 hoist and identified the components that have a potential spark risk. A spark can be generated from fast moving components such as the pawls on the ratchet gear. The WH ATEX SS-C4 QP chain hoist uses surface technology to develop the components making it safe to use in hazardous environments.
- TWO YEAR WARRANTY
- Overload protection available
- Low-temperature option (–40°C) available
- Complies with ASME B30.16
SAFETY FACTOR: 4:1
TEMPERATURE RANGE: -40°C to +135°C
LIGHT LOAD CAPABILITY: tested and certified at 2% of the chain hoist rated capacity.
QUAD PAWL (QP): Delivers twice the engagement points, giving you noticeably finer, more precise load adjustments than standard two-pawl designs.

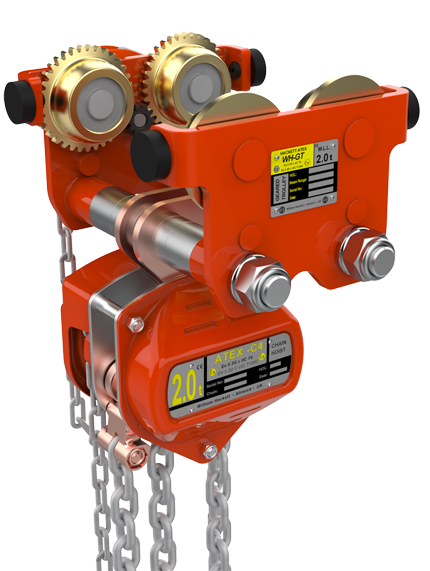

SPARK RESISTANT: copper plated hoist components and stainless steel hand chain makes the hoist safe to use in hazardous environments.

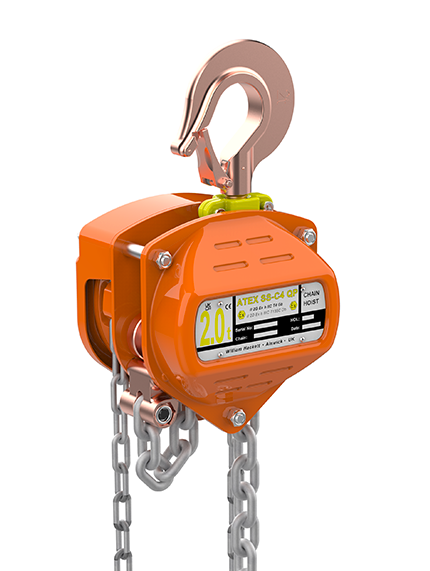

SAFETY LATCHES: hooks are fitted with heavy duty cast steel latches. The latch and hook tip are interlocking, creating a strong and robust hook closure.
HOOK OVERLOAD AND TRACEABILITY MARKS: hooks have overload indicator marks either side of the hook throat. Both top and bottom hooks are embossed with a batch code, manufacturer’s mark and the working load limit.
HAND CHAIN JOINER: a unique hand chain joiner is used as a quick and secure method of joining the hand chain.
HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc insert locking nuts to allow full inspection.

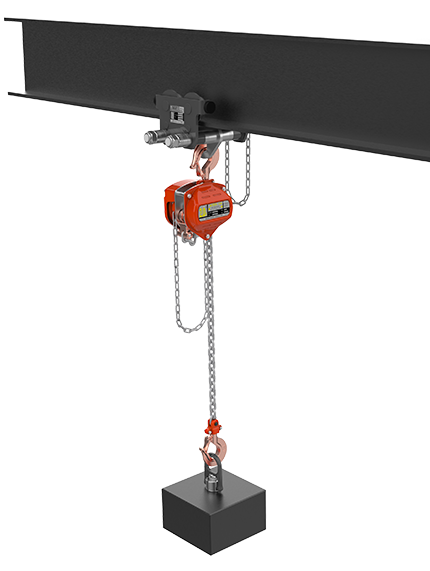

FLEETING/CROSS HAULING: independently tested (test report 2550-7615) for fleeting or cross hauling applications. Certified to angles up to 60° from the vertical without deration of the WLL.
LOAD CHAIN: fitted with load chain that fully complies with BS EN818-7 Grade T (8).
MANUFACTURED AND PROOF TESTED in the U.K.
| MODEL | Cap. metric tons | Safe working load | Test load | Standard lift | No. of chain falls | Net weight 3 m (9.84 ft) | Extra weight per m |
| lb | metric tons | ft | lb | lb | |||
| ATEXSSC4QP01T | 1 | 2 204 | 1.5 | 9.84 ft (3m) | 1 | 24.5 | 3.8 |
| ATEXSSC4QP02T | 2 | 4 409 | 3 | 1 | 37 | 4.9 | |
| ATEXSSC4QP03T | 3.2 | 6 613 | 4.8 | 2 | 53.6 | 7.9 | |
| ATEXSSC4QP05T | 5 | 11 023 | 7.5 | 2 | 84.7 | 11.6 |
| ||||||||

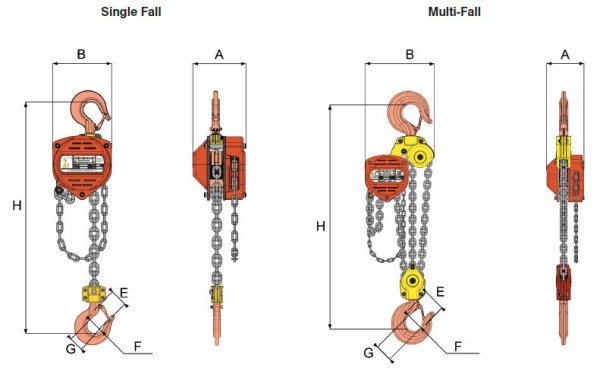

| Capacity Metric Tons [1000kg] | Load chain mm | Hand chain mm | Dimensions, mm | |||||
| A mm | B mm | E mm | F mm | G mm | H mm | |||
| 1.0 | 6 x 18 | 5 x 25 | 134 | 155 | 49.0 | 40 | 25.5 | 350 |
| 2.0 | 8 x 24 | 157 | 185 | 54.5 | 44 | 30.0 | 410 | |
| 3.2 | 157 | 235 | 61.0 | 48 | 37.5 | 495 | ||
| 5.0 | 10 x 30 | 180 | 262 | 85.0 | 60 | 43.0 | 635 | |
