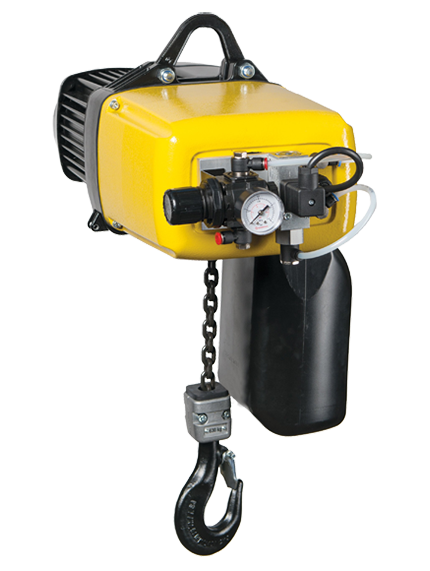

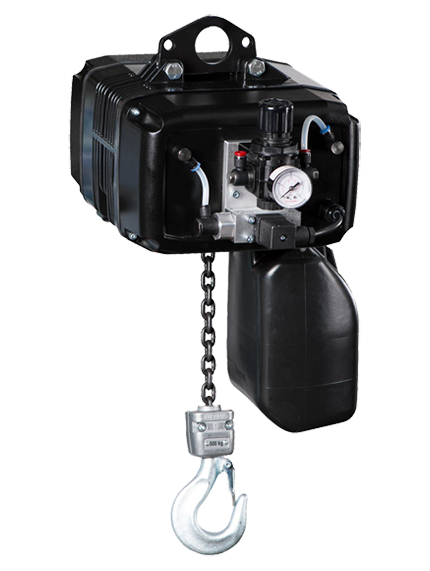

GIS Electric chain hoist explosion proof

  • Explosion proof
  • Explosion proof
    • Explosion proof
    • Explosion proof
      Reference
      GP, ATEX

      Built for hazardous environments, the GIS Explosion-Proof Electric Chain Hoist meets strict ATEX standards for zones with flammable gases or dust. Its fully enclosed motor, spark-resistant components, and robust construction ensure safe and reliable lifting in chemical plants, refineries, and grain handling facilities. Designed and manufactured in Switzerland, it offers the trusted performance of GIS with the added protection required in explosive-risk areas.

      • Explosion proof ATEX version
      • Available in a dust and gasproof execution
      • For zones 22 (D) and 2 (G)
      • Protection class IP65
      • Option: motorised trolley in ATEX version

      Documentation


      Description

      Technical
      specifications

      Maximum load capacity (at 2 falls):
      GP250 - 1000: 2500 kg, GCH1600 - 2500: 5000 kg
      575V/3Ph 60 Hz, 460V/1Ph 60 Hz, 230V/3Ph 60 Hz
      Control voltage 115 V low voltage
      3-phase motor: 1 or 2 lifting speeds
      Standard lifting height 3 m
      Control cable length 1.8 m
      Eyebolt suspension
      Geared limit switch
      Ergonomic control switch with emergency stop
      Protection class IP65
      Isolation class F (motor)
      DC spring brake
      Slipping clutch outside the drive train
      Available in dust- and gasproof execution

      Dust-proof version:
      Equipment group II, Equipment category 3
      Zone 22 (D)
      Temperature = <130 °C
      with temperature monitoring

      Gas-proof version:
      Equipment group II, Equipment category 3
      Zone 2 (G), 22 (D)
      Temperature class = T3
      with temperature monitoring
      operation interruption in the event of a pressure drop



      Customer's
      Benefit

      		This gasproof execution guarantees maximum safety:
      The entry of gas is avoided through an overpressure in the housing. At a lost of pressure in the housing the power will be cut immediately.


      Accessories
      & options

      		Other operating voltages on request
      Other control voltages on request
      Hook suspension
      Safety load hook
      Chain bucket for various lifting heights
      Electric and push trolleys
