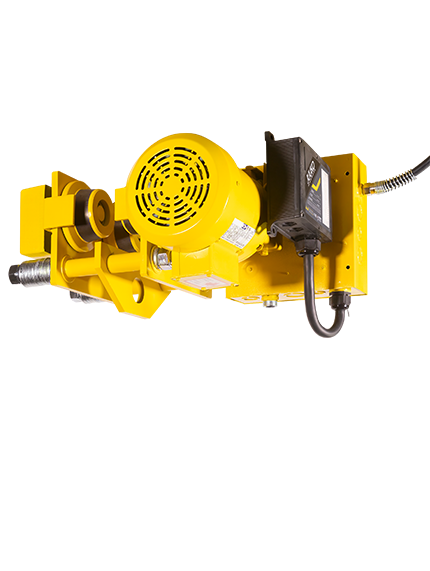

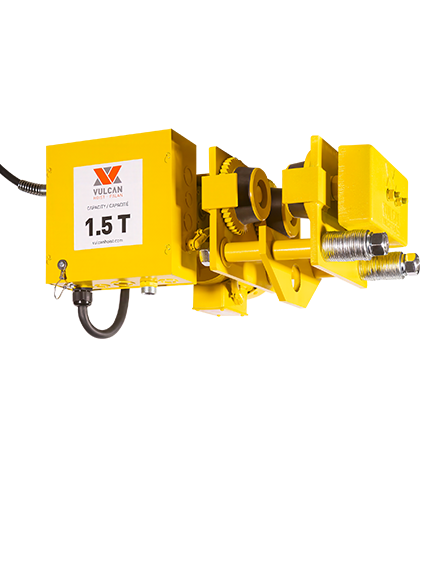

The Vulcan Electric Trolley combines rugged design with advanced safety features for reliable beam travel. Built with machined-steel wheels, drop stops, and bumpers, it adapts to H, I, or custom beams. With single or double-speed motors and multiple travel options, it ensures durability and precision.
- Two year warranty
- Sturdy design
- Machined-steel wheels and gears
- Built-in bumper and drop stop
- Single or double-speed motor
- Multiple travel speeds available
- Built according to ANSI / ASME B30.17
- Certified to CSA C22.2 No.33
- Complies with UL 1004-1 & UL 1340 standards
| MODEL | Capacity | Counter-weight* | Weight | Available speeds (fpm) (single speed motor) | Available speeds (fpm) (double-speed motor) |
| lb | lb | ||||
| HOUET1T | 2000 | 2 | 156 | 7, 9, 14, 18, 24, 36, 48, 72 | 7/2, 9/3, 18/6, 24/8, 36/12, 72/24 |
| HOUET2T | 4000 | 1 | 170 | 7, 9, 14, 18, 24, 36, 48, 72 | 7/2, 9/3, 18/6, 24/8, 36/12, 72/24 |
| HOUET3T | 6000 | 1 | 207 | 7, 9, 14, 18, 24, 36, 48, 72 | 7/2, 9/3, 18/6, 24/8, 36/12, 72/24 |
| HOUET5T | 10 000 | 1 | 267 | 7, 9, 14, 18, 24, 36, 48, 72 | 7/2, 9/3, 18/6, 24/8, 36/12, 72/24 |
| HOUET10T | 20 000 | 0 | 390 | 18, 24, 36, 48 | 18/6, 24/8, 36/12 |
| Capacity in US short tons (2,000 LBS) by default. Metric ton upon request. | |||||
|
||||||||||||
| MODEL | A | B | C | D | E | F (Beam Flange) ** |
G | H | I | J* | K (min. curve radius) |
|
| Min. | Max. | |||||||||||
| HOUET1T | 4,0 | 2,8 | 7,8 | 0,75 | 0,38 | 2,50 | 5,50 | 4,3 | 1,00 | 2,0 | 18,5 | 28 |
| HOUET2T | 4,9 | 4,0 | 8,5 | 0,81 | 0,50 | 4,00 | 6,50 | 4,4 | 1,25 | 2,0 | 18,5 | 33 |
| HOUET3T | 5,8 | 4,5 | 5,8 | 0,81 | 0,63 | 4,00 | 6,50 | 5,8 | 1,25 | 2,0 | 18,5 | 35 |
| HOUET5T | 6,3 | 5,3 | 6,0 | 0,69 | 0,63 | 4,00 | 7,00 | 6,2 | 1,25 | 2,0 | 19,8 | 50 |
| HOUET10T | 7,4 | 6,0 | 4,2 | 1,63 | 0,75 | 4,00 | 6,25 | 9,3 | 1,81 | 2,5 | 21,5 | 61 |
| All measurements displayed in inches. | ||||||||||||
* Can vary depending on chosen options
** For larger beam flanges, please contact us
|
Like Vulcan’s electric chain hoists, electric trolleys have a sturdy, durable design. Their wheels and gears are made of machined, case-hardened steel that provide a maximum resistance to wear. Bumpers and fall arrests are built into the design to provide better safety and a protection against contacts. The trolley design, with 2 support bolts (3 for the 10T model) provides an increased sturdiness under all load conditions. Mainly designed to be used with Vulcan hoists, these trolleys can also be combined with hoists from other manufacturers on a wide array of H or I beam dimensions. |
Vulcan’s electrical hoists are available with several travel speed options, as well as with a single speed or double-speed engine. Lastly, depending on the chosen hoist-trolley combination and options, we carry a complete line of available controls, including wireless remote controls. |
