Reference
SUGVC-XXE

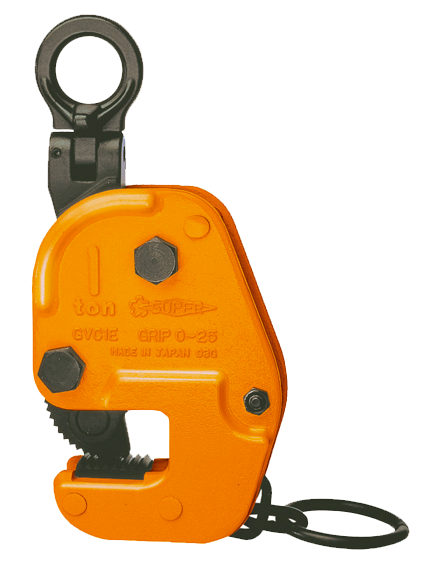

Made in Japan, the Supertool GVC Lateral Lifting Clamp is engineered for the lateral (horizontal) lifting of structural steel beams—including H-beams, I-beams, T-beams, and L-beams—as well as flat steel bars. Its swing shackle works together with an arc-shaped pad to deliver stable, secure horizontal clamping force, while the spring-type tightening lock mechanism ensures a positive initial clamp every time, making it a reliable choice for structural steel handling and fabrication work.
- Two-year warranty
- The structural parts are Die-forged.
- Tested at 300% of the rated load
- Meets ASME B30.20
- Meets ASME BTH-1 Design Category A
- Meets ASME BTH-1 Service Class 0
Documentation
File
Description
- For lateral (horizontal) lifting of steel beams used in structures (H beams, I beams, T beams, L beams, etc.) and flat steel bars.
- The swing shackle and arc-shaped pad provide a stable lateral (horizontal) clamping force (swing shackle type).
- The spring-type tightening lock mechanism ensures a positive initial clamping force (lock handle type).

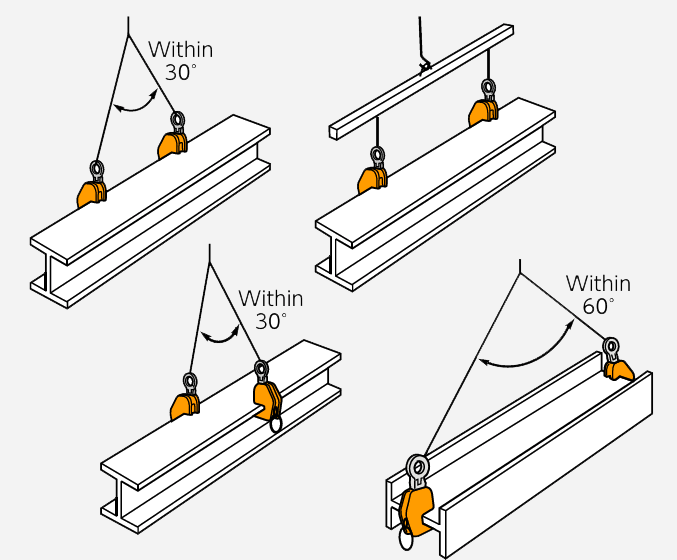

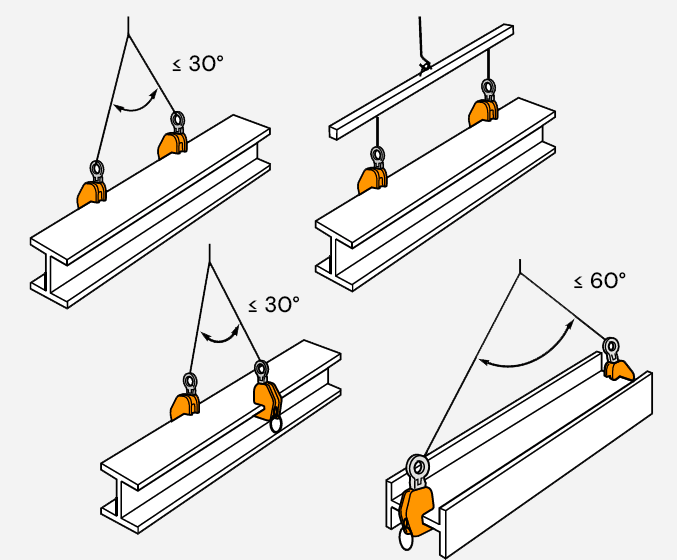

BEAM LIFTING

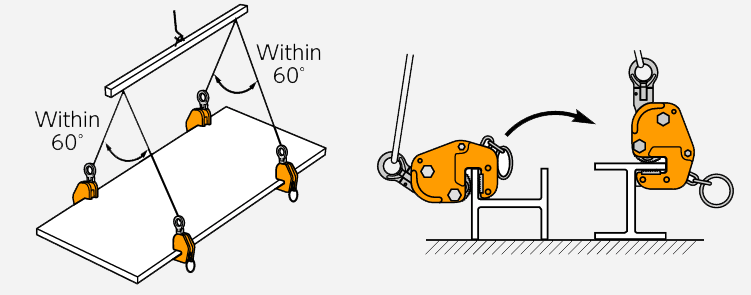

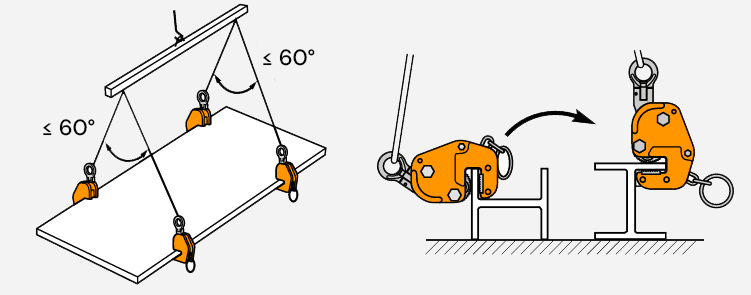

PLATE LIFTING & BEAM TURNING

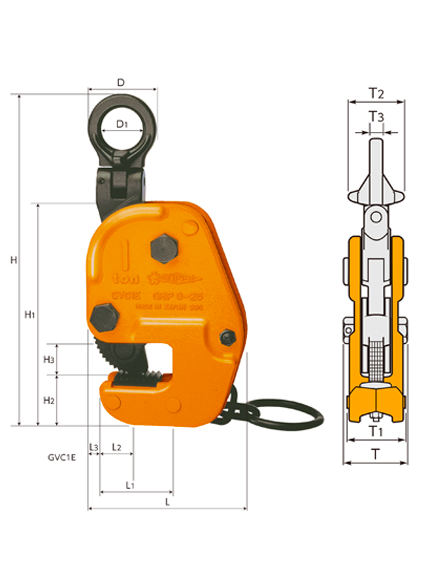

Models & Dimensions
| Model | Cap. (ton) | Jaw Opening | Size mm [in] | Net weight | |||||||||||||
| mm [in] | L | L1 | L2 | L3 | H (Max) | H1 | H2 | H3 | D | D1 | T | T1 | T2 | T3 | kg [lbs] | ||
| GVC0.5E | 0.5 | 0-20 [0.79] | 103 [4.06] | 47 [1.85] | 20 [0.79] | 6 [0.24] | 229 [9.02] | 145 [5.71] | 34 [1.34] | 23 [0.91] | 52 [2.05] | 30 [1.18] | 55 [2.17] | 45 [1.77] | 45 [1.77] | 10 [0.39] | 2.6 [5.73] |
| GVC1E | 1 | 0-25 [0.98] | 130 [5.12] | 62 [2.44] | 26 [1.02] | 10 [0.39] | 276 [10.87] | 183 [7.20] | 40 [1.57] | 28 [1.10] | 60 [2.36] | 35 [1.38] | 64 [2.52] | 52 [2.05] | 53 [2.09] | 12 [0.47] | 4.5 [9.92] |
| GVC2E | 2 | 5-35 [0.20-1.38] | 163 [6.42] | 70 [2.76] | 27 [1.06] | 12 [0.47] | 343 [13.50] | 222 [8.74] | 50 [1.97] | 38 [1.50] | 76 [2.99] | 45 [1.77] | 79 [3.11] | 63 [2.48] | 67 [2.64] | 14 [0.55] | 9 [19.84] |
